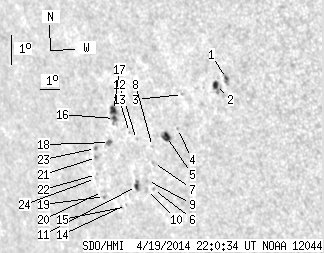

SDO HMI 2014-04-19 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.10 | 56.38 | 14.60 | 48.60 | -20.19 | 139.80 | -54.44 | 111.06 | 0.8195 | 73.3 | 48.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 4.08 | 0.41 | 3.14 | -18.68 | 144.81 | -49.43 | 110.06 | 0.7683 | 914.2 | 769.1 | |
| 2.92 | 7.62 | 2.28 | 5.95 | -18.86 | 144.20 | -50.05 | 110.17 | 0.7751 | 705.8 | 591.8 | |
| 0.00 | 0.89 | 0.00 | 0.72 | -19.02 | 142.45 | -51.79 | 110.06 | 0.7930 | -523.0 | -462.3 | |
| 0.00 | 0.89 | 0.00 | 0.73 | -20.04 | 141.72 | -52.52 | 111.19 | 0.8018 | -396.0 | -334.1 | |
| 4.61 | 6.91 | 3.86 | 5.80 | -20.25 | 141.03 | -53.21 | 111.32 | 0.8088 | 623.8 | 367.0 | |
| 0.00 | 1.06 | 0.00 | 0.93 | -21.82 | 139.47 | -54.77 | 112.96 | 0.8257 | 406.0 | 347.6 | |
| 0.00 | 0.89 | 0.00 | 0.76 | -20.99 | 139.93 | -54.31 | 112.04 | 0.8202 | 133.0 | 227.3 | |
| 0.00 | 0.53 | 0.00 | 0.46 | -20.50 | 140.14 | -54.10 | 111.48 | 0.8176 | 321.0 | 309.0 | |
| 0.00 | 0.80 | 0.00 | 0.70 | -21.52 | 139.30 | -54.94 | 112.57 | 0.8268 | -263.0 | -253.4 | |
| 0.00 | 2.22 | 0.00 | 1.95 | -21.82 | 139.07 | -55.17 | 112.89 | 0.8293 | -180.0 | -172.2 | |
| 1.68 | 4.70 | 1.50 | 4.18 | -21.66 | 138.59 | -55.65 | 112.62 | 0.8334 | -418.9 | -391.1 | |
| 0.00 | 0.80 | 0.00 | 0.69 | -20.22 | 139.39 | -54.85 | 111.02 | 0.8241 | -544.0 | -479.3 | |
| 0.00 | 0.80 | 0.00 | 0.70 | -19.98 | 139.13 | -55.11 | 110.69 | 0.8262 | -450.0 | -408.1 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -22.17 | 137.70 | -56.54 | 113.07 | 0.8419 | -366.0 | -453.0 | |
| 0.00 | 1.06 | 0.00 | 0.98 | -22.24 | 137.36 | -56.89 | 113.10 | 0.8450 | -486.0 | -351.2 | |
| 1.60 | 11.17 | 1.41 | 9.88 | -19.49 | 138.53 | -55.71 | 110.02 | 0.8311 | 562.2 | 340.1 | |
| 3.72 | -16.00 | 3.29 | -16.00 | -19.25 | 138.60 | -55.64 | 109.74 | 0.8301 | 618.7 | 999999 | |
| 1.60 | 3.63 | 1.44 | 3.28 | -20.20 | 137.86 | -56.38 | 110.78 | 0.8380 | 503.6 | 339.5 | |
| 0.00 | 1.77 | 0.00 | 1.66 | -21.83 | 136.59 | -57.65 | 112.51 | 0.8510 | -529.0 | -378.0 | |
| 0.00 | 1.42 | 0.00 | 1.33 | -21.67 | 136.57 | -57.67 | 112.31 | 0.8509 | -560.0 | -461.1 | |
| 0.00 | 1.77 | 0.00 | 1.64 | -20.60 | 136.86 | -57.38 | 111.11 | 0.8472 | -553.0 | -485.5 | |
| 0.00 | 0.53 | 0.00 | 0.50 | -21.12 | 136.54 | -57.70 | 111.67 | 0.8505 | -609.0 | -524.3 | |
| 0.44 | 1.68 | 0.41 | 1.55 | -20.33 | 136.96 | -57.28 | 110.80 | 0.8460 | -557.4 | -446.9 | |
| 0.00 | 0.89 | 0.00 | 0.83 | -21.24 | 136.41 | -57.83 | 111.79 | 0.8518 | -455.0 | -400.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
