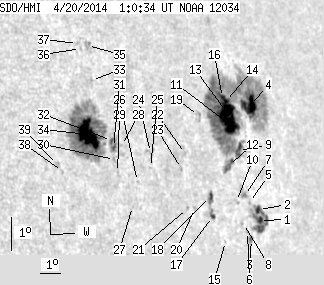

SDO HMI 2014-04-20 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.95 | 605.54 | 107.70 | 521.25 | 4.46 | 246.50 | 53.92 | 279.25 | 0.8171 | -165.5 | -107.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.37 | 33.78 | 3.11 | 31.10 | 2.06 | 249.65 | 57.07 | 275.80 | 0.8452 | -683.4 | -465.5 | |
| 3.19 | -1.00 | 2.94 | -1.00 | 2.39 | 249.62 | 57.03 | 276.20 | 0.8453 | -496.6 | 999999 | |
| 1.33 | 3.19 | 1.21 | 2.90 | 1.45 | 249.18 | 56.59 | 275.15 | 0.8400 | -508.5 | -471.6 | |
| 19.15 | 339.17 | 17.81 | 308.27 | 5.55 | 249.46 | 56.88 | 279.92 | 0.8483 | -496.8 | -298.4 | |
| 0.00 | 1.24 | 0.00 | 1.13 | 2.57 | 249.13 | 56.54 | 276.48 | 0.8410 | -557.0 | -498.6 | |
| 0.00 | 0.98 | 0.00 | 0.88 | 1.67 | 248.97 | 56.38 | 275.45 | 0.8383 | -585.0 | -502.5 | |
| 0.80 | 6.03 | 0.72 | 5.44 | 2.76 | 248.87 | 56.28 | 276.76 | 0.8388 | -419.1 | -133.6 | |
| 0.00 | 0.71 | 0.00 | 0.64 | 1.90 | 248.76 | 56.17 | 275.75 | 0.8366 | -641.0 | -599.4 | |
| 5.68 | -4.00 | 5.14 | -4.00 | 4.11 | 248.67 | 56.08 | 278.39 | 0.8388 | -524.7 | 999999 | |
| 0.00 | 2.75 | 0.00 | 2.46 | 2.54 | 248.42 | 55.83 | 276.57 | 0.8342 | -337.0 | -346.5 | |
| 21.02 | -4.00 | 18.88 | -4.00 | 4.88 | 248.27 | 55.69 | 279.37 | 0.8362 | -723.1 | 999999 | |
| 5.23 | -4.00 | 4.65 | -4.00 | 3.61 | 248.08 | 55.49 | 277.91 | 0.8324 | -642.7 | 999999 | |
| 16.94 | -4.00 | 15.19 | -4.00 | 5.26 | 248.16 | 55.58 | 279.85 | 0.8358 | -743.2 | 999999 | |
| 3.81 | -4.00 | 3.43 | -4.00 | 5.57 | 248.15 | 55.56 | 280.21 | 0.8362 | -642.3 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.62 | 1.28 | 247.76 | 55.18 | 275.17 | 0.8262 | 304.0 | 226.5 | |
| 2.31 | -4.00 | 2.07 | -4.00 | 5.68 | 248.01 | 55.42 | 280.38 | 0.8350 | -707.8 | 999999 | |
| 1.77 | 12.15 | 1.53 | 10.48 | 1.99 | 247.11 | 54.52 | 276.13 | 0.8207 | 164.1 | 212.9 | |
| 2.48 | -17.00 | 2.14 | -17.00 | 2.59 | 247.04 | 54.46 | 276.87 | 0.8209 | 335.7 | 999999 | |
| 0.00 | 3.81 | 0.00 | 3.29 | 5.03 | 246.65 | 54.06 | 279.88 | 0.8209 | -680.0 | -618.7 | |
| 0.00 | 1.60 | 0.00 | 1.35 | 2.16 | 246.19 | 53.60 | 276.50 | 0.8117 | 324.0 | 332.9 | |
| 0.00 | 1.60 | 0.00 | 1.34 | 2.14 | 245.83 | 53.25 | 276.53 | 0.8081 | 405.0 | 363.2 | |
| 0.00 | 1.77 | 0.00 | 1.49 | 3.81 | 245.85 | 53.27 | 278.57 | 0.8109 | -522.0 | -449.2 | |
| 0.00 | 1.51 | 0.00 | 1.26 | 3.34 | 245.61 | 53.02 | 278.04 | 0.8076 | -449.0 | -428.2 | |
| 0.00 | 4.97 | 0.00 | 4.02 | 3.71 | 244.10 | 51.52 | 278.81 | 0.7927 | 230.0 | 208.3 | |
| 0.00 | 0.89 | 0.00 | 0.72 | 3.26 | 244.06 | 51.48 | 278.24 | 0.7915 | 340.0 | 270.4 | |
| 0.00 | 0.80 | 0.00 | 0.63 | 2.78 | 243.40 | 50.82 | 277.78 | 0.7837 | 259.0 | 226.8 | |
| 0.00 | 0.62 | 0.00 | 0.49 | 2.00 | 243.12 | 50.54 | 276.85 | 0.7794 | 347.0 | 414.7 | |
| 0.00 | 1.24 | 0.00 | 0.97 | 3.83 | 242.72 | 50.13 | 279.25 | 0.7782 | -54.0 | 19.6 | |
| 0.00 | 0.62 | 0.00 | 0.48 | 2.99 | 242.47 | 49.88 | 278.24 | 0.7739 | 287.0 | 277.0 | |
| 0.00 | 1.68 | 0.00 | 1.31 | 3.38 | 242.35 | 49.77 | 278.76 | 0.7734 | 461.0 | 397.5 | |
| 1.42 | 8.96 | 1.11 | 6.98 | 3.74 | 242.33 | 49.75 | 279.23 | 0.7738 | 524.0 | 388.0 | |
| 1.42 | -31.00 | 1.10 | -31.00 | 3.95 | 242.26 | 49.67 | 279.51 | 0.7734 | 548.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.82 | 5.73 | 241.51 | 48.92 | 281.97 | 0.7690 | 385.0 | 337.5 | |
| 35.03 | 162.89 | 26.67 | 123.97 | 4.06 | 241.15 | 48.57 | 279.90 | 0.7615 | 813.4 | 365.1 | |
| 0.00 | 4.43 | 0.00 | 3.43 | 6.80 | 241.46 | 48.87 | 283.34 | 0.7710 | 603.0 | 476.3 | |
| 0.00 | 1.06 | 0.00 | 0.82 | 6.69 | 241.12 | 48.53 | 283.29 | 0.7670 | 428.0 | 451.5 | |
| 0.00 | 1.24 | 0.00 | 0.95 | 6.83 | 241.00 | 48.42 | 283.51 | 0.7661 | 583.0 | 514.8 | |
| 0.00 | 1.24 | 0.00 | 0.92 | 2.85 | 239.94 | 47.35 | 278.60 | 0.7453 | 439.0 | 409.6 | |
| 0.00 | 2.84 | 0.00 | 2.09 | 3.05 | 239.73 | 47.14 | 278.91 | 0.7432 | 598.0 | 550.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
