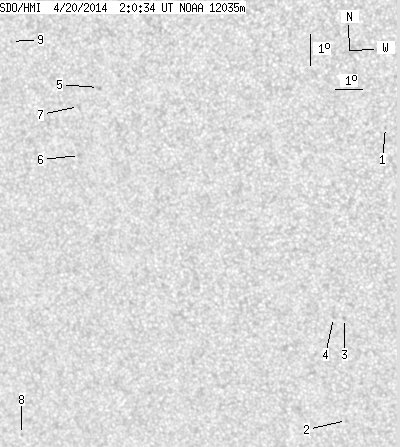

SDO HMI 2014-04-20 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.81 | 0.00 | 6.93 | -20.39 | 163.16 | -28.87 | 121.35 | 0.5347 | -643.9 | -526.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.53 | -18.56 | 171.50 | -20.53 | 125.39 | 0.4096 | -678.0 | -531.3 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -27.77 | 168.50 | -23.53 | 137.85 | 0.5285 | -563.0 | -509.3 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -24.49 | 169.13 | -22.91 | 133.54 | 0.4906 | -796.0 | -633.0 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -24.45 | 168.74 | -23.30 | 133.03 | 0.4945 | -718.0 | -625.9 | |
| 0.00 | 2.04 | 0.00 | 1.19 | -16.94 | 161.68 | -30.36 | 113.98 | 0.5312 | -695.0 | -602.2 | |
| 0.00 | 1.77 | 0.00 | 1.06 | -19.00 | 160.57 | -31.46 | 116.94 | 0.5557 | -467.0 | -387.4 | |
| 0.00 | 2.22 | 0.00 | 1.31 | -17.49 | 160.84 | -31.19 | 114.49 | 0.5450 | -701.0 | -499.2 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -27.67 | 155.73 | -36.31 | 127.17 | 0.6604 | -677.0 | -541.1 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -15.38 | 158.74 | -33.29 | 109.83 | 0.5647 | -500.0 | -457.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
