SDO HMI 2014-04-20 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.57 | 0.00 | 5.15 | 15.18 | 183.95 | -8.08 | 20.71 | 0.3830 | 341.3 | 365.2 | |
|
previous
or next observation for the same group /

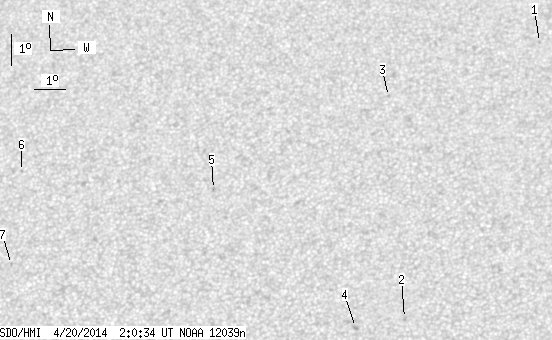

back to the solar disc SDO HMI 2014-04-20 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.59 | 21.15 | 191.78 | -0.26 | 0.54 | 0.4460 | -674.0 | -546.2 | |
| 0.00 | 1.60 | 0.00 | 0.83 | 12.20 | 187.61 | -4.42 | 14.14 | 0.3098 | 873.0 | 679.0 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 19.37 | 186.95 | -5.09 | 11.37 | 0.4259 | -556.0 | -486.5 | |
| 0.00 | 2.66 | 0.00 | 1.39 | 11.93 | 186.10 | -5.93 | 18.95 | 0.3126 | 829.0 | 710.6 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 16.40 | 181.48 | -10.55 | 25.58 | 0.4086 | 739.0 | 618.2 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 17.14 | 175.21 | -16.82 | 36.29 | 0.4692 | 602.0 | 445.7 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 14.14 | 175.13 | -16.90 | 40.70 | 0.4341 | 576.0 | 454.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
