SDO HMI 2014-04-20 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130.83 | 597.37 | 116.68 | 529.02 | 4.47 | 246.54 | 55.06 | 279.03 | 0.8283 | -192.9 | -98.5 | |
|
previous
or next observation for the same group /

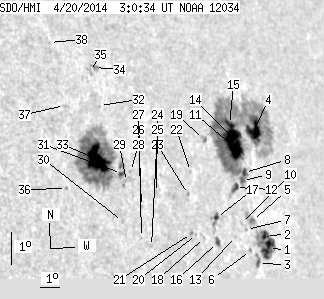

back to the solar disc SDO HMI 2014-04-20 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.93 | 37.96 | 13.32 | 36.17 | 2.02 | 249.93 | 58.44 | 275.54 | 0.8576 | -549.6 | -499.8 | |
| 4.52 | -1.00 | 4.32 | -1.00 | 2.40 | 249.78 | 58.29 | 276.01 | 0.8567 | -495.3 | 999999 | |
| 1.51 | 5.50 | 1.42 | 5.16 | 1.52 | 249.32 | 57.84 | 275.04 | 0.8516 | -547.8 | -484.9 | |
| 16.32 | 324.28 | 15.66 | 304.07 | 5.58 | 249.45 | 57.97 | 279.73 | 0.8581 | -537.9 | -288.1 | |
| 1.24 | 9.85 | 1.16 | 9.19 | 2.80 | 249.06 | 57.58 | 276.59 | 0.8508 | -415.2 | -205.5 | |
| 0.00 | 1.15 | 0.00 | 1.07 | 1.88 | 248.89 | 57.40 | 275.53 | 0.8481 | -585.0 | -486.6 | |
| 0.00 | 0.98 | 0.00 | 0.90 | 2.50 | 248.70 | 57.22 | 276.29 | 0.8471 | -450.0 | -451.5 | |
| 2.84 | -4.00 | 2.65 | -4.00 | 4.24 | 248.76 | 57.27 | 278.32 | 0.8499 | -437.7 | 999999 | |
| 2.13 | -4.00 | 1.98 | -4.00 | 3.99 | 248.61 | 57.13 | 278.04 | 0.8483 | -611.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.06 | 2.66 | 248.44 | 56.95 | 276.53 | 0.8449 | -261.0 | -221.1 | |
| 18.89 | -4.00 | 17.52 | -4.00 | 4.92 | 248.39 | 56.91 | 279.17 | 0.8476 | -749.7 | 999999 | |
| 3.28 | -4.00 | 3.01 | -4.00 | 3.74 | 248.20 | 56.71 | 277.83 | 0.8441 | -686.6 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.73 | 2.24 | 248.07 | 56.59 | 276.09 | 0.8409 | -224.0 | -197.0 | |
| 19.42 | -4.00 | 17.95 | -4.00 | 5.30 | 248.17 | 56.68 | 279.66 | 0.8462 | -792.2 | 999999 | |
| 5.23 | -4.00 | 4.84 | -4.00 | 5.66 | 248.11 | 56.63 | 280.09 | 0.8462 | -696.7 | 999999 | |
| 2.22 | 3.99 | 1.97 | 3.54 | 1.98 | 247.08 | 55.59 | 275.94 | 0.8312 | 327.5 | 162.1 | |
| 2.13 | 9.49 | 1.89 | 8.41 | 2.74 | 247.07 | 55.59 | 276.85 | 0.8321 | 368.5 | 231.9 | |
| 0.00 | 0.44 | 0.00 | 0.39 | 2.08 | 246.39 | 54.91 | 276.17 | 0.8246 | 344.0 | 332.4 | |
| 0.00 | 3.55 | 0.00 | 3.15 | 5.09 | 246.62 | 55.13 | 279.72 | 0.8313 | -701.0 | -655.7 | |
| 0.00 | 0.44 | 0.00 | 0.38 | 2.14 | 245.98 | 54.49 | 276.31 | 0.8206 | 504.0 | 460.8 | |
| 0.00 | 1.33 | 0.00 | 1.14 | 2.16 | 245.72 | 54.23 | 276.37 | 0.8180 | 420.0 | 386.1 | |
| 0.00 | 0.98 | 0.00 | 0.84 | 4.05 | 245.81 | 54.33 | 278.64 | 0.8218 | -648.0 | -559.0 | |
| 0.00 | 1.33 | 0.00 | 1.14 | 3.34 | 245.64 | 54.16 | 277.81 | 0.8190 | -597.0 | -469.7 | |
| 0.00 | 1.24 | 0.00 | 1.03 | 3.28 | 244.01 | 52.53 | 278.05 | 0.8024 | 148.0 | 155.8 | |
| 0.00 | 1.60 | 0.00 | 1.30 | 1.61 | 243.67 | 52.18 | 276.05 | 0.7963 | 300.0 | 244.9 | |
| 0.00 | 1.06 | 0.00 | 0.86 | 2.80 | 243.23 | 51.75 | 277.61 | 0.7936 | 476.0 | 376.2 | |
| 0.00 | 0.98 | 0.00 | 0.79 | 1.85 | 243.18 | 51.70 | 276.43 | 0.7916 | 466.0 | 405.8 | |
| 0.00 | 1.33 | 0.00 | 1.07 | 3.83 | 242.78 | 51.29 | 278.99 | 0.7905 | -119.0 | -87.5 | |
| 0.00 | 2.66 | 0.00 | 2.13 | 3.51 | 242.56 | 51.07 | 278.64 | 0.7876 | 159.0 | 153.0 | |
| 0.00 | 1.06 | 0.00 | 0.84 | 2.27 | 242.28 | 50.80 | 277.13 | 0.7826 | 484.0 | 388.6 | |
| 1.60 | 171.98 | 1.27 | 134.11 | 3.74 | 242.33 | 50.85 | 278.97 | 0.7857 | 550.9 | 356.8 | |
| 0.00 | 0.80 | 0.00 | 0.63 | 5.75 | 241.49 | 50.01 | 281.71 | 0.7807 | 378.0 | 320.7 | |
| 35.57 | -31.00 | 27.72 | -31.00 | 4.09 | 241.22 | 49.74 | 279.66 | 0.7744 | 827.4 | 999999 | |
| 0.00 | 4.26 | 0.00 | 3.37 | 6.91 | 241.41 | 49.93 | 283.18 | 0.7825 | 558.0 | 485.2 | |
| 0.00 | 3.28 | 0.00 | 2.58 | 6.77 | 241.16 | 49.67 | 283.08 | 0.7795 | 474.0 | 457.1 | |
| 0.00 | 0.98 | 0.00 | 0.74 | 3.10 | 239.72 | 48.23 | 278.72 | 0.7558 | 562.0 | 526.6 | |
| 0.00 | 1.77 | 0.00 | 1.35 | 5.64 | 239.85 | 48.37 | 281.99 | 0.7627 | 187.0 | 252.6 | |
| 0.00 | 1.15 | 0.00 | 0.88 | 7.55 | 239.42 | 47.93 | 284.56 | 0.7626 | 515.0 | 372.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
