SDO HMI 2014-04-20 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.11 | 0.00 | 11.82 | -20.04 | 162.37 | -29.12 | 120.08 | 0.5337 | -543.9 | -400.4 | |
|
previous
or next observation for the same group /

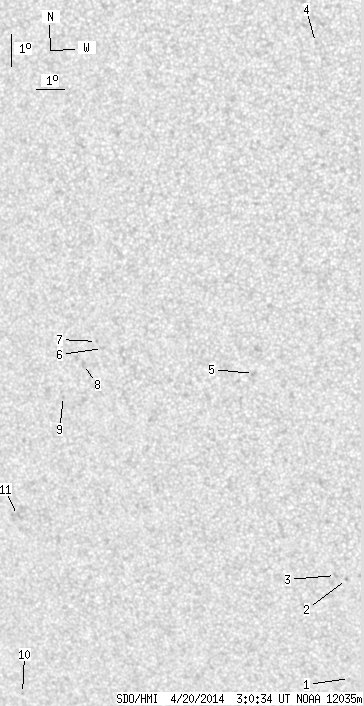

back to the solar disc SDO HMI 2014-04-20 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.36 | -27.73 | 168.51 | -22.97 | 138.41 | 0.5225 | -465.0 | -318.1 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -24.54 | 169.07 | -22.42 | 134.18 | 0.4858 | -859.0 | -734.8 | |
| 0.00 | 1.95 | 0.00 | 1.11 | -24.40 | 168.70 | -22.79 | 133.53 | 0.4885 | -597.0 | -518.6 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -8.00 | 169.99 | -21.49 | 98.59 | 0.3685 | -96.0 | -84.3 | |
| 0.00 | 2.31 | 0.00 | 1.28 | -17.98 | 166.90 | -24.58 | 120.04 | 0.4589 | -330.0 | -374.3 | |
| 0.00 | 1.86 | 0.00 | 1.08 | -16.99 | 161.70 | -29.79 | 114.41 | 0.5238 | -816.0 | -621.9 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -16.77 | 161.52 | -29.97 | 113.90 | 0.5252 | -719.0 | -511.5 | |
| 0.00 | 3.10 | 0.00 | 1.82 | -17.45 | 160.92 | -30.57 | 114.79 | 0.5364 | -771.0 | -533.5 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -18.40 | 159.99 | -31.49 | 115.91 | 0.5532 | -629.0 | -486.5 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -27.67 | 155.72 | -35.76 | 127.50 | 0.6547 | -674.0 | -556.4 | |
| 0.00 | 4.52 | 0.00 | 2.81 | -22.01 | 157.37 | -34.12 | 120.26 | 0.6043 | -27.0 | -113.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
