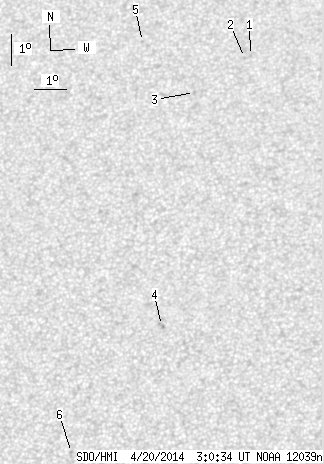

SDO HMI 2014-04-20 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.61 | 0.00 | 4.61 | 15.84 | 186.34 | -5.14 | 14.97 | 0.3724 | -192.3 | 80.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.54 | 20.66 | 188.74 | -2.74 | 5.85 | 0.4404 | -670.0 | -466.8 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 20.60 | 188.55 | -2.93 | 6.28 | 0.4397 | -756.0 | -529.3 | |
| 0.00 | 1.42 | 0.00 | 0.78 | 19.44 | 186.97 | -4.51 | 10.09 | 0.4252 | -657.0 | -455.6 | |
| 0.00 | 2.84 | 0.00 | 1.48 | 11.93 | 186.11 | -5.38 | 17.30 | 0.3096 | 791.0 | 717.6 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 21.16 | 185.24 | -6.25 | 12.88 | 0.4571 | -563.0 | -376.3 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 8.00 | 183.41 | -8.07 | 31.42 | 0.2679 | 701.0 | 617.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
