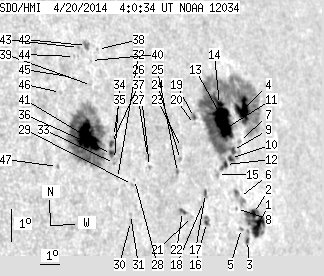

SDO HMI 2014-04-20 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.22 | 601.70 | 115.56 | 540.26 | 4.48 | 246.55 | 55.61 | 278.93 | 0.8335 | -190.4 | -95.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.64 | 38.59 | 14.25 | 37.48 | 2.07 | 249.97 | 59.03 | 275.51 | 0.8629 | -604.4 | -429.0 | |
| 3.73 | -1.00 | 3.61 | -1.00 | 2.42 | 249.76 | 58.82 | 275.94 | 0.8615 | -663.8 | 999999 | |
| 1.42 | 5.85 | 1.36 | 5.59 | 1.57 | 249.36 | 58.42 | 275.02 | 0.8569 | -516.0 | -531.0 | |
| 17.65 | 321.21 | 17.22 | 305.86 | 5.57 | 249.49 | 58.55 | 279.61 | 0.8632 | -509.5 | -295.4 | |
| 0.35 | 1.51 | 0.34 | 1.43 | 1.91 | 249.03 | 58.09 | 275.46 | 0.8544 | -584.0 | -497.4 | |
| 0.00 | 8.34 | 0.00 | 7.91 | 2.85 | 248.98 | 58.04 | 276.56 | 0.8550 | -272.0 | -187.3 | |
| 0.00 | 1.95 | 0.00 | 1.88 | 4.57 | 249.17 | 58.23 | 278.52 | 0.8590 | -207.0 | -150.7 | |
| 0.00 | 0.98 | 0.00 | 0.92 | 2.50 | 248.78 | 57.84 | 276.18 | 0.8528 | -345.0 | -438.4 | |
| 2.93 | -4.00 | 2.78 | -4.00 | 4.26 | 248.72 | 57.79 | 278.24 | 0.8546 | -470.8 | 999999 | |
| 2.40 | -4.00 | 2.26 | -4.00 | 4.00 | 248.58 | 57.64 | 277.97 | 0.8530 | -604.7 | 999999 | |
| 19.07 | -4.00 | 17.97 | -4.00 | 4.90 | 248.41 | 57.47 | 279.05 | 0.8527 | -753.1 | 999999 | |
| 2.31 | -4.00 | 2.15 | -4.00 | 3.80 | 248.27 | 57.34 | 277.78 | 0.8499 | -690.5 | 999999 | |
| 18.63 | -4.00 | 17.50 | -4.00 | 5.32 | 248.19 | 57.25 | 279.57 | 0.8513 | -798.0 | 999999 | |
| 5.50 | -4.00 | 5.17 | -4.00 | 5.62 | 248.18 | 57.24 | 279.92 | 0.8517 | -692.5 | 999999 | |
| 0.00 | 3.37 | 0.00 | 3.10 | 3.45 | 247.79 | 56.86 | 277.47 | 0.8450 | -479.0 | -489.9 | |
| 0.80 | 4.70 | 0.72 | 4.22 | 1.94 | 247.07 | 56.14 | 275.80 | 0.8363 | 389.8 | 261.4 | |
| 0.98 | 2.93 | 0.88 | 2.64 | 2.82 | 247.08 | 56.14 | 276.84 | 0.8375 | 332.0 | 234.5 | |
| 0.00 | 1.15 | 0.00 | 1.03 | 2.57 | 246.95 | 56.01 | 276.56 | 0.8359 | 476.0 | 347.0 | |
| 1.06 | 3.19 | 0.96 | 2.87 | 5.11 | 246.72 | 55.79 | 279.62 | 0.8375 | -699.2 | -615.5 | |
| 0.00 | 0.53 | 0.00 | 0.48 | 4.90 | 246.69 | 55.76 | 279.37 | 0.8369 | -259.0 | -202.3 | |
| 0.00 | 0.80 | 0.00 | 0.70 | 2.07 | 246.32 | 55.39 | 276.07 | 0.8293 | 385.0 | 219.2 | |
| 1.60 | 3.37 | 1.39 | 2.94 | 2.18 | 245.80 | 54.86 | 276.29 | 0.8243 | 484.3 | 307.0 | |
| 0.00 | 0.71 | 0.00 | 0.62 | 4.13 | 245.91 | 54.97 | 278.62 | 0.8282 | -612.0 | -413.1 | |
| 0.00 | 1.51 | 0.00 | 1.32 | 3.76 | 245.82 | 54.88 | 278.19 | 0.8268 | -444.0 | -370.1 | |
| 0.00 | 2.40 | 0.00 | 2.08 | 3.35 | 245.62 | 54.69 | 277.73 | 0.8242 | -548.0 | -466.9 | |
| 0.00 | 1.06 | 0.00 | 0.90 | 3.43 | 244.18 | 53.25 | 278.09 | 0.8100 | 266.0 | 183.7 | |
| 0.00 | 3.73 | 0.00 | 3.13 | 3.73 | 244.11 | 53.17 | 278.47 | 0.8098 | 209.0 | 173.5 | |
| 0.00 | 0.71 | 0.00 | 0.58 | 2.98 | 243.39 | 52.46 | 277.69 | 0.8012 | 239.0 | 194.6 | |
| 0.00 | 1.33 | 0.00 | 1.09 | 2.82 | 243.28 | 52.35 | 277.51 | 0.7998 | 440.0 | 365.2 | |
| 0.00 | 1.86 | 0.00 | 1.52 | 1.68 | 243.12 | 52.19 | 276.13 | 0.7964 | 249.0 | 241.1 | |
| 0.00 | 1.06 | 0.00 | 0.87 | 1.89 | 243.13 | 52.20 | 276.39 | 0.7969 | 392.0 | 370.2 | |
| 0.00 | 1.33 | 0.00 | 1.08 | 2.95 | 242.55 | 51.62 | 277.81 | 0.7924 | 422.0 | 325.9 | |
| 0.00 | 1.06 | 0.00 | 0.86 | 3.39 | 242.44 | 51.50 | 278.40 | 0.7920 | 529.0 | 401.2 | |
| 0.00 | 1.51 | 0.00 | 1.22 | 3.52 | 242.45 | 51.51 | 278.55 | 0.7923 | 391.0 | 301.9 | |
| 0.00 | 0.62 | 0.00 | 0.50 | 4.22 | 242.46 | 51.53 | 279.42 | 0.7937 | 200.0 | 151.6 | |
| 2.04 | 3.73 | 1.65 | 3.00 | 3.69 | 242.32 | 51.38 | 278.79 | 0.7912 | 492.5 | 353.8 | |
| 1.51 | 3.46 | 1.22 | 2.80 | 4.00 | 242.34 | 51.41 | 279.17 | 0.7920 | 496.6 | 335.7 | |
| 0.00 | 0.71 | 0.00 | 0.58 | 6.85 | 242.01 | 51.07 | 282.79 | 0.7943 | 213.0 | 175.2 | |
| 0.00 | 0.44 | 0.00 | 0.35 | 5.71 | 241.56 | 50.63 | 281.49 | 0.7872 | 491.0 | 425.4 | |
| 0.00 | 0.71 | 0.00 | 0.57 | 6.48 | 241.62 | 50.68 | 282.44 | 0.7894 | 186.0 | 255.6 | |
| 30.60 | 165.53 | 24.13 | 130.43 | 4.10 | 241.20 | 50.26 | 279.55 | 0.7801 | 898.3 | 357.3 | |
| 0.00 | 4.61 | 0.00 | 3.70 | 6.94 | 241.49 | 50.56 | 283.03 | 0.7891 | 612.0 | 476.4 | |
| 0.00 | 0.80 | 0.00 | 0.64 | 6.85 | 241.10 | 50.16 | 283.03 | 0.7848 | 572.0 | 507.2 | |
| 0.00 | 0.98 | 0.00 | 0.77 | 6.55 | 240.86 | 49.93 | 282.73 | 0.7816 | 515.0 | 483.2 | |
| 0.00 | 0.53 | 0.00 | 0.42 | 5.90 | 240.73 | 49.79 | 281.94 | 0.7787 | 498.0 | 472.2 | |
| 0.00 | 1.42 | 0.00 | 1.10 | 5.39 | 240.06 | 49.13 | 281.47 | 0.7704 | 427.0 | 437.0 | |
| 0.00 | 1.42 | 0.00 | 1.08 | 3.11 | 239.72 | 48.78 | 278.61 | 0.7620 | 574.0 | 512.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
