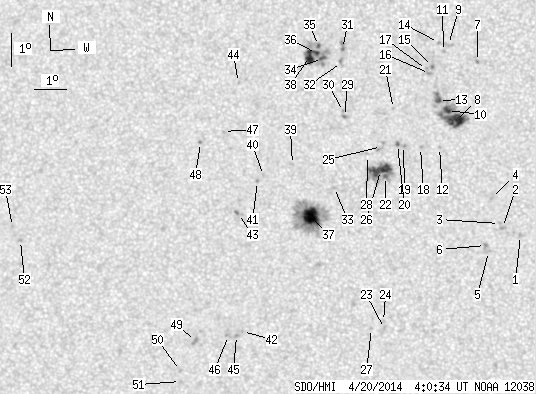

SDO HMI 2014-04-20 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.41 | 294.02 | 37.34 | 147.90 | -11.23 | 183.68 | -7.25 | 130.63 | 0.1667 | 559.8 | 305.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.75 | 0.00 | 1.38 | -13.51 | 188.72 | -2.21 | 165.43 | 0.1500 | 904.0 | 665.3 | |
| 0.00 | 2.57 | 0.00 | 1.29 | -13.26 | 188.17 | -2.77 | 161.48 | 0.1486 | 1032.0 | 779.7 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -13.14 | 188.08 | -2.86 | 160.63 | 0.1471 | 795.0 | 622.5 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -12.38 | 187.84 | -3.10 | 157.12 | 0.1363 | 965.0 | 742.3 | |
| 0.00 | 2.22 | 0.00 | 1.11 | -13.99 | 187.72 | -3.21 | 160.42 | 0.1630 | 865.0 | 643.9 | |
| 0.00 | 2.84 | 0.00 | 1.42 | -13.81 | 187.63 | -3.30 | 159.51 | 0.1606 | 1099.0 | 865.8 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -8.24 | 187.46 | -3.48 | 131.46 | 0.0805 | 1004.0 | 795.9 | |
| 17.30 | 53.31 | 8.62 | 26.57 | -10.01 | 186.76 | -4.17 | 139.55 | 0.1109 | 1162.9 | 718.4 | |
| 0.00 | 3.73 | 0.00 | 1.85 | -7.72 | 186.58 | -4.36 | 120.36 | 0.0876 | 793.0 | 709.6 | |
| 3.99 | -8.00 | 1.99 | -8.00 | -9.71 | 186.52 | -4.41 | 136.09 | 0.1098 | 1223.7 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -7.93 | 186.42 | -4.51 | 121.52 | 0.0918 | 895.0 | 621.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.82 | 186.26 | -4.68 | 140.81 | 0.1273 | 925.0 | 748.2 | |
| 2.22 | -8.00 | 1.11 | -8.00 | -9.40 | 186.25 | -4.68 | 132.38 | 0.1096 | 1132.5 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -7.65 | 186.28 | -4.66 | 118.12 | 0.0917 | 863.0 | 714.9 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -8.38 | 186.08 | -4.85 | 123.62 | 0.1010 | 1205.0 | 1000.1 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -8.59 | 185.99 | -4.95 | 124.83 | 0.1043 | 976.0 | 747.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.47 | 185.90 | -5.04 | 123.38 | 0.1045 | 795.0 | 675.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.82 | 185.68 | -5.26 | 137.48 | 0.1338 | 829.0 | 735.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.75 | 185.15 | -5.78 | 134.46 | 0.1393 | 910.0 | 788.2 | |
| 0.62 | 1.51 | 0.31 | 0.75 | -10.72 | 184.97 | -5.97 | 133.41 | 0.1412 | 1027.4 | 883.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.63 | 184.87 | -6.07 | 126.71 | 0.1306 | 440.0 | 263.6 | |
| 1.24 | 38.32 | 0.62 | 19.22 | -11.69 | 184.58 | -6.36 | 136.28 | 0.1576 | 954.1 | 585.1 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -16.32 | 184.41 | -6.53 | 150.56 | 0.2230 | 726.0 | 589.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -16.10 | 184.38 | -6.55 | 149.97 | 0.2200 | 862.0 | 646.8 | |
| 0.00 | 4.17 | 0.00 | 2.09 | -10.78 | 184.47 | -6.46 | 131.46 | 0.1482 | 662.0 | 664.1 | |
| 14.10 | -22.00 | 7.07 | -22.00 | -11.50 | 184.43 | -6.51 | 134.79 | 0.1572 | 1160.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -16.31 | 184.00 | -6.94 | 149.05 | 0.2264 | 641.0 | 488.7 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -11.04 | 184.04 | -6.90 | 130.97 | 0.1569 | 203.0 | 301.0 | |
| 0.00 | 2.22 | 0.00 | 1.11 | -9.86 | 183.36 | -7.58 | 122.21 | 0.1543 | -1147.0 | -961.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -9.70 | 183.33 | -7.61 | 121.27 | 0.1534 | -869.0 | -701.0 | |
| 0.35 | 4.26 | 0.18 | 2.13 | -7.80 | 183.34 | -7.60 | 109.40 | 0.1395 | -1086.0 | -901.0 | |
| 0.00 | 3.55 | 0.00 | 1.78 | -8.23 | 183.30 | -7.64 | 112.13 | 0.1426 | -800.0 | -656.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -12.00 | 182.99 | -7.95 | 131.38 | 0.1811 | 759.0 | 658.9 | |
| 1.77 | 38.59 | 0.89 | 19.34 | -8.10 | 182.72 | -8.22 | 109.95 | 0.1512 | -1220.9 | -682.6 | |
| 0.98 | -34.00 | 0.49 | -34.00 | -7.70 | 182.60 | -8.33 | 107.23 | 0.1510 | -1027.8 | 999999 | |
| 2.13 | -34.00 | 1.07 | -34.00 | -7.94 | 182.54 | -8.40 | 108.62 | 0.1533 | -1293.0 | 999999 | |
| 21.02 | 89.68 | 10.63 | 45.35 | -12.87 | 182.24 | -8.69 | 132.36 | 0.2004 | 1359.4 | 413.3 | |
| 8.69 | -34.00 | 4.36 | -34.00 | -8.03 | 182.32 | -8.61 | 108.74 | 0.1573 | -1062.8 | 999999 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -11.28 | 181.70 | -9.23 | 124.23 | 0.1912 | -731.0 | -513.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -11.60 | 180.79 | -10.15 | 123.17 | 0.2071 | -815.0 | -668.4 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -11.78 | 180.59 | -10.34 | 123.42 | 0.2115 | -1003.0 | -780.4 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -16.34 | 179.90 | -11.04 | 136.68 | 0.2690 | 855.0 | 663.7 | |
| 0.00 | 2.93 | 0.00 | 1.49 | -12.74 | 179.96 | -10.98 | 125.56 | 0.2293 | -783.0 | -770.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -8.78 | 180.11 | -10.83 | 109.00 | 0.1972 | -858.0 | -585.0 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -16.46 | 179.70 | -11.24 | 136.50 | 0.2727 | 904.0 | 769.6 | |
| 0.00 | 2.48 | 0.00 | 1.28 | -16.46 | 179.44 | -11.49 | 135.86 | 0.2756 | 838.0 | 705.5 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -10.25 | 179.59 | -11.34 | 114.86 | 0.2143 | 644.0 | 567.0 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -10.57 | 178.86 | -12.08 | 114.89 | 0.2278 | 1074.0 | 889.3 | |
| 0.00 | 3.10 | 0.00 | 1.61 | -16.62 | 178.37 | -12.56 | 133.82 | 0.2902 | 915.0 | 851.1 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -17.50 | 177.82 | -13.11 | 134.86 | 0.3065 | 911.0 | 728.6 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -17.84 | 177.80 | -13.14 | 135.62 | 0.3107 | 715.0 | 624.1 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -13.40 | 172.95 | -17.98 | 116.05 | 0.3358 | -1021.0 | -831.8 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -12.97 | 172.72 | -18.21 | 114.61 | 0.3364 | -832.0 | -648.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
