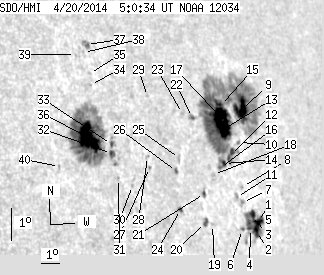

SDO HMI 2014-04-20 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.80 | 592.51 | 122.35 | 540.12 | 4.53 | 246.57 | 56.18 | 278.87 | 0.8389 | -227.4 | -104.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.19 | 42.23 | 7.16 | 41.66 | 2.22 | 250.15 | 59.76 | 275.57 | 0.8694 | -534.1 | -394.5 | |
| 7.10 | -1.00 | 7.03 | -1.00 | 1.91 | 250.01 | 59.62 | 275.23 | 0.8679 | -654.8 | 999999 | |
| 6.03 | -1.00 | 5.94 | -1.00 | 2.37 | 249.74 | 59.36 | 275.80 | 0.8661 | -635.6 | 999999 | |
| 1.95 | -1.00 | 1.91 | -1.00 | 1.97 | 249.66 | 59.27 | 275.35 | 0.8648 | -772.6 | 999999 | |
| 4.52 | -1.00 | 4.43 | -1.00 | 2.15 | 249.61 | 59.22 | 275.57 | 0.8646 | -788.6 | 999999 | |
| 0.53 | 1.51 | 0.51 | 1.46 | 1.90 | 249.18 | 58.79 | 275.35 | 0.8606 | -587.0 | -535.9 | |
| 0.00 | 2.22 | 0.00 | 2.15 | 2.73 | 249.24 | 58.85 | 276.29 | 0.8621 | -643.0 | -495.9 | |
| 0.00 | 1.06 | 0.00 | 1.04 | 3.22 | 249.28 | 58.89 | 276.85 | 0.8630 | -426.0 | -345.0 | |
| 17.39 | 320.97 | 17.24 | 310.87 | 5.59 | 249.54 | 59.15 | 279.51 | 0.8683 | -527.5 | -293.8 | |
| 0.00 | 1.86 | 0.00 | 1.82 | 4.55 | 249.20 | 58.81 | 278.39 | 0.8640 | -244.0 | -154.5 | |
| 0.00 | 3.19 | 0.00 | 3.07 | 2.85 | 248.90 | 58.51 | 276.49 | 0.8592 | 80.0 | -202.4 | |
| 5.50 | -9.00 | 5.29 | -9.00 | 4.12 | 248.68 | 58.29 | 277.98 | 0.8589 | -556.8 | 999999 | |
| 17.39 | -9.00 | 16.65 | -9.00 | 4.92 | 248.44 | 58.05 | 278.95 | 0.8579 | -779.5 | 999999 | |
| 2.04 | -9.00 | 1.94 | -9.00 | 3.84 | 248.30 | 57.91 | 277.73 | 0.8552 | -719.3 | 999999 | |
| 3.99 | -9.00 | 3.82 | -9.00 | 5.61 | 248.31 | 57.93 | 279.78 | 0.8578 | -631.8 | 999999 | |
| 0.71 | -9.00 | 0.67 | -9.00 | 3.70 | 248.06 | 57.67 | 277.61 | 0.8528 | -777.9 | 999999 | |
| 15.88 | -9.00 | 15.16 | -9.00 | 5.30 | 248.21 | 57.82 | 279.44 | 0.8564 | -843.9 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.82 | 3.46 | 247.64 | 57.25 | 277.40 | 0.8486 | -467.0 | -386.4 | |
| 0.00 | 1.15 | 0.00 | 1.06 | 1.92 | 247.46 | 57.08 | 275.63 | 0.8451 | -294.0 | -222.2 | |
| 1.77 | 3.90 | 1.62 | 3.56 | 1.95 | 247.08 | 56.69 | 275.72 | 0.8415 | 413.4 | 266.6 | |
| 1.06 | 2.57 | 0.97 | 2.35 | 2.84 | 247.08 | 56.69 | 276.76 | 0.8427 | 293.1 | 161.6 | |
| 0.89 | 3.73 | 0.81 | 3.40 | 5.12 | 246.67 | 56.28 | 279.52 | 0.8421 | -730.7 | -618.7 | |
| 0.00 | 1.24 | 0.00 | 1.12 | 5.20 | 246.13 | 55.75 | 279.73 | 0.8373 | -312.0 | -281.1 | |
| 1.06 | 2.13 | 0.94 | 1.88 | 2.25 | 245.74 | 55.35 | 276.29 | 0.8291 | 412.2 | 318.0 | |
| 0.00 | 2.57 | 0.00 | 2.28 | 3.81 | 245.81 | 55.42 | 278.13 | 0.8320 | -507.0 | -364.3 | |
| 0.80 | 2.40 | 0.70 | 2.11 | 3.39 | 245.61 | 55.22 | 277.68 | 0.8295 | -488.6 | -394.2 | |
| 0.00 | 1.15 | 0.00 | 0.98 | 3.41 | 244.20 | 53.81 | 277.96 | 0.8157 | 245.0 | 187.1 | |
| 0.00 | 1.69 | 0.00 | 1.43 | 3.74 | 244.12 | 53.74 | 278.38 | 0.8154 | 225.0 | 198.7 | |
| 0.00 | 1.33 | 0.00 | 1.15 | 5.59 | 244.34 | 53.95 | 280.56 | 0.8207 | -99.0 | -107.8 | |
| 0.00 | 0.89 | 0.00 | 0.74 | 2.80 | 243.28 | 52.90 | 277.38 | 0.8055 | 457.0 | 366.6 | |
| 0.00 | 1.15 | 0.00 | 0.94 | 2.96 | 242.60 | 52.21 | 277.71 | 0.7986 | 424.0 | 361.1 | |
| 1.51 | 180.27 | 1.23 | 144.10 | 3.70 | 242.31 | 51.92 | 278.69 | 0.7969 | 508.4 | 324.1 | |
| 0.80 | -32.00 | 0.65 | -32.00 | 3.98 | 242.33 | 51.95 | 279.03 | 0.7976 | 534.4 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.86 | 5.75 | 241.50 | 51.12 | 281.42 | 0.7924 | 390.0 | 285.8 | |
| 0.00 | 1.51 | 0.00 | 1.22 | 6.09 | 241.50 | 51.11 | 281.83 | 0.7930 | 359.0 | 320.1 | |
| 34.69 | -32.00 | 27.68 | -32.00 | 4.11 | 241.23 | 50.84 | 279.43 | 0.7862 | 896.5 | 999999 | |
| 0.00 | 5.41 | 0.00 | 4.39 | 6.98 | 241.48 | 51.10 | 282.94 | 0.7948 | 623.0 | 487.5 | |
| 0.00 | 1.15 | 0.00 | 0.93 | 6.72 | 241.30 | 50.91 | 282.67 | 0.7923 | 445.0 | 401.4 | |
| 0.00 | 0.80 | 0.00 | 0.64 | 6.63 | 240.90 | 50.51 | 282.66 | 0.7880 | 471.0 | 414.3 | |
| 0.00 | 1.42 | 0.00 | 1.09 | 3.13 | 239.78 | 49.39 | 278.50 | 0.7687 | 544.0 | 486.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
