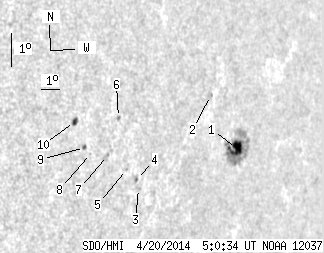

SDO HMI 2014-04-20 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.76 | 72.12 | 15.52 | 66.44 | -8.86 | 248.13 | 57.74 | 262.79 | 0.8434 | 299.0 | 109.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.19 | 54.29 | 13.52 | 51.86 | -8.81 | 249.46 | 59.07 | 262.84 | 0.8564 | 659.9 | 170.9 | |
| 0.00 | 2.75 | 0.00 | 2.49 | -7.33 | 247.62 | 57.23 | 264.62 | 0.8398 | 97.0 | 188.1 | |
| 0.00 | 1.95 | 0.00 | 1.63 | -10.40 | 244.40 | 54.01 | 260.91 | 0.8082 | -174.0 | -284.3 | |
| 0.00 | 1.95 | 0.00 | 1.63 | -10.14 | 244.23 | 53.84 | 261.23 | 0.8064 | -602.0 | -438.8 | |
| 0.00 | 0.98 | 0.00 | 0.80 | -9.87 | 243.65 | 53.26 | 261.54 | 0.8004 | -205.0 | -204.7 | |
| 0.00 | 1.69 | 0.00 | 1.36 | -8.34 | 242.92 | 52.53 | 263.46 | 0.7926 | 551.0 | 479.3 | |
| 0.00 | 1.77 | 0.00 | 1.42 | -9.52 | 242.60 | 52.21 | 261.97 | 0.7894 | 570.0 | 369.2 | |
| 0.00 | 0.89 | 0.00 | 0.70 | -9.52 | 241.76 | 51.37 | 261.95 | 0.7804 | -283.0 | -242.9 | |
| 0.62 | 1.95 | 0.49 | 1.53 | -9.36 | 241.43 | 51.04 | 262.15 | 0.7768 | -587.7 | -415.9 | |
| 1.95 | 3.90 | 1.51 | 3.02 | -8.61 | 240.80 | 50.41 | 263.11 | 0.7698 | -641.1 | -454.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
