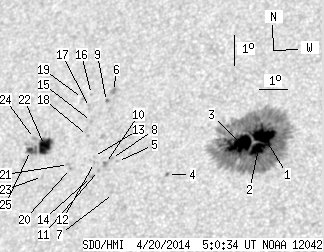

SDO HMI 2014-04-20 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.31 | 433.44 | 47.11 | 255.78 | 18.05 | 166.94 | -23.45 | 44.17 | 0.5440 | -353.3 | -305.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.80 | 374.82 | 13.32 | 219.35 | 18.22 | 168.20 | -22.19 | 42.53 | 0.5328 | -1246.6 | -413.4 | |
| 14.46 | -1.00 | 8.43 | -1.00 | 17.80 | 168.08 | -22.31 | 43.24 | 0.5296 | -1400.7 | 999999 | |
| 24.66 | -1.00 | 14.47 | -1.00 | 17.95 | 167.48 | -22.91 | 43.78 | 0.5373 | -1125.4 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.84 | 17.07 | 165.04 | -25.35 | 47.83 | 0.5543 | -591.0 | -447.4 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 17.58 | 163.20 | -27.19 | 49.08 | 0.5786 | 543.0 | 489.1 | |
| 0.00 | 3.10 | 0.00 | 1.93 | 19.90 | 162.64 | -27.74 | 46.56 | 0.6050 | 804.0 | 596.5 | |
| 0.00 | 0.62 | 0.00 | 0.37 | 16.54 | 163.22 | -27.17 | 50.51 | 0.5694 | 30.0 | 29.7 | |
| 0.00 | 1.86 | 0.00 | 1.13 | 17.68 | 162.97 | -27.42 | 49.17 | 0.5821 | 709.0 | 624.1 | |
| 0.00 | 0.89 | 0.00 | 0.55 | 19.58 | 162.45 | -27.94 | 47.17 | 0.6041 | 771.0 | 661.5 | |
| 0.00 | 2.57 | 0.00 | 1.57 | 17.53 | 162.78 | -27.61 | 49.57 | 0.5828 | 914.0 | 791.0 | |
| 0.00 | 1.06 | 0.00 | 0.65 | 17.31 | 162.56 | -27.82 | 50.08 | 0.5832 | 811.0 | 662.6 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 17.58 | 162.38 | -28.01 | 49.90 | 0.5875 | 814.0 | 695.9 | |
| 0.00 | 0.62 | 0.00 | 0.38 | 17.78 | 162.31 | -28.08 | 49.69 | 0.5900 | 506.0 | 370.7 | |
| 0.00 | 2.48 | 0.00 | 1.51 | 17.13 | 162.34 | -28.04 | 50.55 | 0.5840 | 964.0 | 678.3 | |
| 0.00 | 1.24 | 0.00 | 0.77 | 18.94 | 162.03 | -28.36 | 48.42 | 0.6029 | 424.0 | 448.6 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 19.84 | 161.86 | -28.53 | 47.42 | 0.6124 | 542.0 | 443.4 | |
| 0.00 | 2.75 | 0.00 | 1.71 | 19.41 | 161.87 | -28.52 | 47.96 | 0.6086 | 636.0 | 518.3 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 18.48 | 161.97 | -28.42 | 49.08 | 0.5996 | 755.0 | 581.7 | |
| 0.00 | 1.42 | 0.00 | 0.89 | 19.72 | 161.55 | -28.84 | 47.86 | 0.6145 | 583.0 | 377.1 | |
| 0.00 | 1.24 | 0.00 | 0.76 | 17.42 | 161.54 | -28.85 | 50.91 | 0.5953 | 806.0 | 643.6 | |
| 0.00 | 1.15 | 0.00 | 0.71 | 17.56 | 161.44 | -28.94 | 50.82 | 0.5975 | 708.0 | 616.1 | |
| 14.55 | 29.45 | 9.11 | 18.47 | 18.23 | 160.45 | -29.94 | 50.84 | 0.6136 | 953.3 | 457.0 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 17.21 | 160.56 | -29.83 | 52.11 | 0.6043 | 490.0 | 421.9 | |
| 0.00 | 2.40 | 0.00 | 1.51 | 18.48 | 160.03 | -30.36 | 50.88 | 0.6200 | -166.0 | -102.0 | |
| 2.84 | -22.00 | 1.78 | -22.00 | 18.09 | 159.96 | -30.43 | 51.46 | 0.6177 | 700.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
