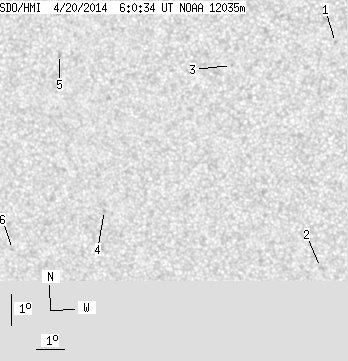

SDO HMI 2014-04-20 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.96 | 0.00 | 5.13 | -20.80 | 163.95 | -25.88 | 124.55 | 0.4983 | -734.8 | -553.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.43 | -17.46 | 170.51 | -19.33 | 124.54 | 0.3849 | -813.0 | -665.6 | |
| 0.00 | 2.31 | 0.00 | 1.29 | -24.47 | 169.00 | -20.84 | 136.03 | 0.4683 | -683.0 | -473.8 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -18.05 | 166.91 | -22.93 | 121.76 | 0.4375 | -792.0 | -613.1 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -22.39 | 161.60 | -28.23 | 124.94 | 0.5357 | -636.0 | -467.7 | |
| 0.00 | 2.66 | 0.00 | 1.54 | -17.47 | 160.94 | -28.90 | 115.87 | 0.5143 | -847.0 | -595.9 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -23.46 | 157.85 | -31.98 | 123.86 | 0.5874 | -638.0 | -588.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
