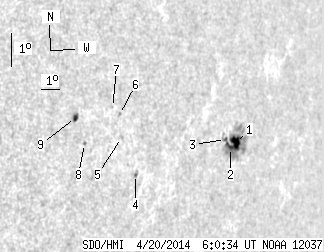

SDO HMI 2014-04-20 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.48 | 66.01 | 12.62 | 62.24 | -8.83 | 248.41 | 58.57 | 262.81 | 0.8511 | 378.4 | 169.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.98 | 54.92 | 7.75 | 53.26 | -8.76 | 249.51 | 59.67 | 262.89 | 0.8617 | 644.6 | 203.5 | |
| 2.22 | -1.00 | 2.14 | -1.00 | -8.93 | 249.25 | 59.41 | 262.69 | 0.8594 | 820.3 | 999999 | |
| 0.80 | -1.00 | 0.76 | -1.00 | -8.71 | 248.89 | 59.05 | 262.95 | 0.8563 | 685.8 | 999999 | |
| 0.35 | 2.57 | 0.30 | 2.17 | -10.13 | 244.20 | 54.37 | 261.25 | 0.8117 | -521.5 | -304.6 | |
| 0.00 | 1.42 | 0.00 | 1.17 | -9.07 | 243.23 | 53.39 | 262.55 | 0.8017 | 474.0 | 375.5 | |
| 0.00 | 1.42 | 0.00 | 1.16 | -8.39 | 242.99 | 53.15 | 263.40 | 0.7991 | 544.0 | 459.4 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -8.20 | 242.60 | 52.76 | 263.64 | 0.7951 | 598.0 | 549.7 | |
| 0.00 | 1.24 | 0.00 | 0.98 | -9.38 | 241.43 | 51.59 | 262.13 | 0.7827 | -569.0 | -535.8 | |
| 2.13 | 3.64 | 1.67 | 2.85 | -8.63 | 240.84 | 51.00 | 263.09 | 0.7763 | -582.8 | -438.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
