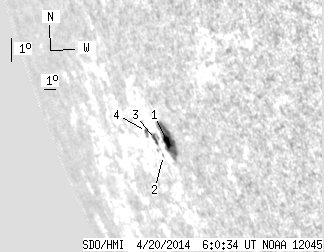

SDO HMI 2014-04-20 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.98 | 42.59 | 12.07 | 63.77 | -23.02 | 118.56 | -71.28 | 112.59 | 0.9455 | 493.1 | 366.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.32 | 32.38 | 7.90 | 47.77 | -23.08 | 118.86 | -70.98 | 112.67 | 0.9440 | 655.1 | 416.5 | |
| 0.00 | 0.98 | 0.00 | 1.51 | -23.43 | 117.99 | -71.85 | 113.00 | 0.9486 | 176.0 | 166.4 | |
| 2.04 | 5.59 | 3.18 | 8.67 | -22.89 | 117.84 | -71.99 | 112.43 | 0.9492 | 279.8 | 277.3 | |
| 0.62 | 3.64 | 0.99 | 5.82 | -22.59 | 117.27 | -72.56 | 112.09 | 0.9520 | 206.0 | 116.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
