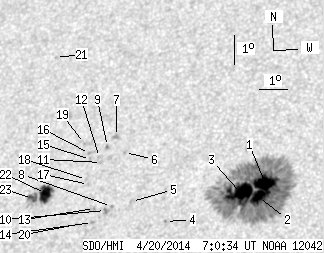

SDO HMI 2014-04-20 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.68 | 445.18 | 57.45 | 260.40 | 18.03 | 166.90 | -22.39 | 42.92 | 0.5330 | -422.7 | -276.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.33 | 386.73 | 15.84 | 224.42 | 18.20 | 168.20 | -21.10 | 41.16 | 0.5216 | -1222.8 | -379.8 | |
| 14.90 | -1.00 | 8.62 | -1.00 | 17.75 | 168.02 | -21.28 | 42.00 | 0.5185 | -1410.9 | 999999 | |
| 36.02 | -1.00 | 20.96 | -1.00 | 17.90 | 167.42 | -21.87 | 42.58 | 0.5261 | -1059.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.58 | 17.08 | 164.91 | -24.38 | 46.74 | 0.5439 | -446.0 | -310.7 | |
| 0.00 | 1.86 | 0.00 | 1.12 | 17.79 | 163.62 | -25.67 | 47.21 | 0.5642 | 596.0 | 567.5 | |
| 0.00 | 1.15 | 0.00 | 0.70 | 19.42 | 163.11 | -26.18 | 45.59 | 0.5847 | 720.0 | 587.8 | |
| 0.00 | 2.66 | 0.00 | 1.64 | 19.97 | 162.73 | -26.56 | 45.29 | 0.5936 | 685.0 | 580.4 | |
| 0.00 | 1.06 | 0.00 | 0.64 | 17.65 | 162.94 | -26.35 | 48.12 | 0.5702 | 711.0 | 614.3 | |
| 0.00 | 1.51 | 0.00 | 0.93 | 19.65 | 162.46 | -26.83 | 45.98 | 0.5933 | 806.0 | 720.8 | |
| 0.00 | 2.31 | 0.00 | 1.39 | 17.53 | 162.75 | -26.54 | 48.49 | 0.5712 | 896.0 | 741.0 | |
| 0.00 | 1.15 | 0.00 | 0.71 | 19.12 | 162.34 | -26.95 | 46.78 | 0.5898 | 471.0 | 388.7 | |
| 0.00 | 2.31 | 0.00 | 1.42 | 19.29 | 162.24 | -27.05 | 46.67 | 0.5924 | 503.0 | 520.1 | |
| 0.00 | 1.06 | 0.00 | 0.64 | 17.61 | 162.34 | -26.95 | 48.80 | 0.5763 | 848.0 | 713.5 | |
| 0.00 | 1.24 | 0.00 | 0.75 | 17.16 | 162.35 | -26.95 | 49.42 | 0.5722 | 927.0 | 782.3 | |
| 0.00 | 1.33 | 0.00 | 0.82 | 19.24 | 161.92 | -27.37 | 47.06 | 0.5951 | 414.0 | 440.9 | |
| 0.00 | 1.24 | 0.00 | 0.77 | 19.44 | 161.85 | -27.44 | 46.87 | 0.5977 | 543.0 | 488.5 | |
| 0.00 | 1.33 | 0.00 | 0.81 | 18.41 | 162.00 | -27.29 | 48.07 | 0.5870 | 707.0 | 529.5 | |
| 0.00 | 1.33 | 0.00 | 0.81 | 18.58 | 161.90 | -27.39 | 47.95 | 0.5896 | 764.0 | 655.3 | |
| 0.00 | 0.71 | 0.00 | 0.44 | 19.78 | 161.61 | -27.68 | 46.67 | 0.6032 | 488.0 | 403.9 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 17.12 | 161.78 | -27.51 | 50.05 | 0.5780 | 673.0 | 592.4 | |
| 0.00 | 0.53 | 0.00 | 0.34 | 22.75 | 159.91 | -29.38 | 44.67 | 0.6459 | 657.0 | 578.2 | |
| 15.44 | 33.89 | 9.55 | 20.99 | 18.19 | 160.49 | -28.80 | 49.85 | 0.6010 | 941.9 | 402.5 | |
| 3.99 | -22.00 | 2.48 | -22.00 | 18.05 | 160.04 | -29.25 | 50.46 | 0.6046 | 756.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
