SDO HMI 2014-04-20 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.06 | 61.67 | 23.82 | 47.41 | -20.03 | 140.32 | -48.98 | 111.93 | 0.7653 | 257.8 | 177.2 | |
|
previous
or next observation for the same group /

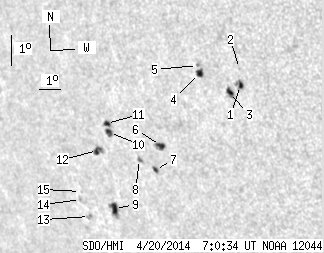

back to the solar disc SDO HMI 2014-04-20 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.13 | 6.03 | 1.49 | 4.22 | -18.51 | 145.34 | -43.95 | 111.13 | 0.7079 | 810.0 | 630.2 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -17.98 | 145.47 | -43.83 | 110.44 | 0.7052 | -263.0 | -259.7 | |
| 2.84 | 5.06 | 2.00 | 3.57 | -18.69 | 144.79 | -44.50 | 111.24 | 0.7147 | 711.6 | 550.5 | |
| 3.73 | 5.59 | 2.67 | 4.01 | -18.03 | 143.66 | -45.63 | 110.05 | 0.7259 | 710.4 | 473.0 | |
| 0.00 | 1.33 | 0.00 | 0.95 | -17.78 | 143.65 | -45.64 | 109.71 | 0.7255 | 536.0 | 534.9 | |
| 4.26 | 7.10 | 3.23 | 5.38 | -20.12 | 141.05 | -48.24 | 112.21 | 0.7589 | 737.7 | 444.9 | |
| 1.69 | 3.28 | 1.29 | 2.52 | -20.84 | 140.50 | -48.79 | 113.01 | 0.7662 | 492.6 | 390.4 | |
| 0.89 | 3.02 | 0.69 | 2.34 | -20.48 | 139.87 | -49.43 | 112.41 | 0.7720 | 538.4 | 319.9 | |
| 6.21 | 10.03 | 5.04 | 8.14 | -21.90 | 137.92 | -51.38 | 113.77 | 0.7943 | -697.7 | -463.4 | |
| 3.19 | 5.06 | 2.52 | 4.00 | -19.55 | 138.77 | -50.52 | 111.00 | 0.7814 | 642.7 | 403.3 | |
| 2.22 | 4.08 | 1.75 | 3.22 | -19.27 | 138.74 | -50.55 | 110.63 | 0.7812 | 692.6 | 484.7 | |
| 3.90 | 5.94 | 3.14 | 4.79 | -20.06 | 137.93 | -51.37 | 111.47 | 0.7907 | 497.0 | 256.0 | |
| 0.00 | 2.84 | 0.00 | 2.38 | -22.06 | 136.50 | -52.79 | 113.66 | 0.8080 | -641.0 | -440.2 | |
| 0.00 | 1.51 | 0.00 | 1.26 | -21.51 | 136.31 | -52.98 | 112.95 | 0.8088 | -481.0 | -388.8 | |
| 0.00 | 0.53 | 0.00 | 0.44 | -21.26 | 136.44 | -52.85 | 112.67 | 0.8072 | -515.0 | -495.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
