SDO HMI 2014-04-20 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.62 | 546.95 | 113.72 | 522.69 | 4.55 | 246.72 | 57.97 | 278.55 | 0.8551 | -258.9 | -107.6 | |
|
previous
or next observation for the same group /

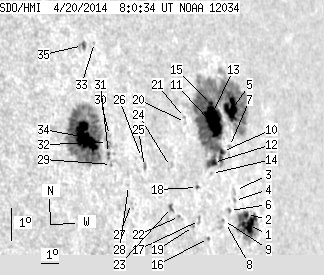

back to the solar disc SDO HMI 2014-04-20 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.32 | 46.75 | 17.13 | 48.96 | 2.12 | 250.19 | 61.44 | 275.21 | 0.8833 | -716.6 | -406.9 | |
| 2.48 | -1.00 | 2.60 | -1.00 | 2.45 | 250.08 | 61.34 | 275.59 | 0.8828 | -720.7 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.55 | 3.13 | 249.46 | 60.71 | 276.45 | 0.8784 | -434.0 | -425.8 | |
| 0.00 | 1.69 | 0.00 | 1.73 | 2.82 | 249.36 | 60.62 | 276.11 | 0.8773 | -151.0 | -259.3 | |
| 20.49 | 294.46 | 21.38 | 299.43 | 5.61 | 249.56 | 60.81 | 279.23 | 0.8822 | -517.7 | -285.1 | |
| 0.44 | 1.86 | 0.45 | 1.89 | 2.49 | 249.03 | 60.28 | 275.79 | 0.8741 | -599.8 | -507.3 | |
| 0.00 | 1.51 | 0.00 | 1.55 | 4.45 | 249.24 | 60.50 | 277.98 | 0.8782 | -344.0 | -244.8 | |
| 0.00 | 0.44 | 0.00 | 0.44 | 2.10 | 248.75 | 60.01 | 275.39 | 0.8713 | -499.0 | -495.2 | |
| 0.00 | 0.80 | 0.00 | 0.80 | 2.15 | 248.64 | 59.89 | 275.46 | 0.8704 | -548.0 | -529.0 | |
| 1.86 | -5.00 | 1.88 | -5.00 | 4.27 | 248.79 | 60.04 | 277.84 | 0.8741 | -500.5 | 999999 | |
| 17.66 | -5.00 | 17.79 | -5.00 | 5.00 | 248.47 | 59.72 | 278.74 | 0.8724 | -861.0 | 999999 | |
| 3.19 | -5.00 | 3.17 | -5.00 | 3.88 | 248.20 | 59.45 | 277.51 | 0.8686 | -816.4 | 999999 | |
| 16.86 | -5.00 | 16.91 | -5.00 | 5.36 | 248.28 | 59.54 | 279.17 | 0.8713 | -912.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.96 | 3.54 | 248.04 | 59.29 | 277.14 | 0.8669 | -504.0 | -536.3 | |
| 2.48 | -5.00 | 2.49 | -5.00 | 5.69 | 248.28 | 59.54 | 279.55 | 0.8717 | -831.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 1.03 | 1.54 | 247.70 | 58.96 | 274.89 | 0.8616 | 229.0 | 228.1 | |
| 0.00 | 2.84 | 0.00 | 2.72 | 2.04 | 247.20 | 58.46 | 275.55 | 0.8578 | 286.0 | 287.5 | |
| 0.62 | 1.42 | 0.60 | 1.36 | 3.04 | 247.16 | 58.42 | 276.71 | 0.8586 | 185.0 | 170.2 | |
| 0.00 | 1.33 | 0.00 | 1.26 | 1.83 | 246.85 | 58.10 | 275.35 | 0.8543 | 174.0 | 174.5 | |
| 0.00 | 1.24 | 0.00 | 1.19 | 4.99 | 246.70 | 57.95 | 279.04 | 0.8571 | -517.0 | -499.3 | |
| 0.00 | 0.89 | 0.00 | 0.85 | 5.14 | 246.66 | 57.92 | 279.22 | 0.8570 | -621.0 | -577.2 | |
| 0.00 | 1.24 | 0.00 | 1.15 | 2.08 | 246.06 | 57.32 | 275.76 | 0.8475 | 153.0 | 161.2 | |
| 1.33 | 3.46 | 1.22 | 3.17 | 2.32 | 245.63 | 56.89 | 276.11 | 0.8438 | 407.6 | 308.7 | |
| 0.00 | 2.57 | 0.00 | 2.38 | 3.57 | 245.68 | 56.93 | 277.57 | 0.8459 | -510.0 | -420.4 | |
| 0.00 | 2.93 | 0.00 | 2.60 | 3.46 | 244.25 | 55.50 | 277.69 | 0.8323 | 218.0 | 155.9 | |
| 0.00 | 0.80 | 0.00 | 0.71 | 3.72 | 244.11 | 55.37 | 278.03 | 0.8314 | 245.0 | 255.6 | |
| 0.00 | 0.89 | 0.00 | 0.77 | 2.28 | 243.47 | 54.72 | 276.41 | 0.8230 | 506.0 | 450.9 | |
| 0.00 | 0.98 | 0.00 | 0.85 | 2.82 | 243.35 | 54.60 | 277.08 | 0.8226 | 393.0 | 348.7 | |
| 0.00 | 1.51 | 0.00 | 1.28 | 3.39 | 242.51 | 53.76 | 277.93 | 0.8152 | 258.0 | 316.8 | |
| 0.00 | 1.60 | 0.00 | 1.36 | 4.28 | 242.49 | 53.75 | 279.01 | 0.8164 | 276.0 | 204.6 | |
| 0.62 | 2.75 | 0.53 | 2.33 | 3.72 | 242.38 | 53.64 | 278.35 | 0.8144 | 395.9 | 291.3 | |
| 0.00 | 4.79 | 0.00 | 4.07 | 4.05 | 242.36 | 53.62 | 278.76 | 0.8148 | 210.0 | 210.6 | |
| 0.00 | 0.44 | 0.00 | 0.38 | 7.10 | 242.11 | 53.37 | 282.49 | 0.8178 | 238.0 | 191.6 | |
| 33.27 | 159.69 | 27.57 | 132.28 | 4.13 | 241.26 | 52.51 | 279.08 | 0.8037 | 967.7 | 309.8 | |
| 0.00 | 5.50 | 0.00 | 4.64 | 6.96 | 241.48 | 52.73 | 282.48 | 0.8113 | 477.0 | 467.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
