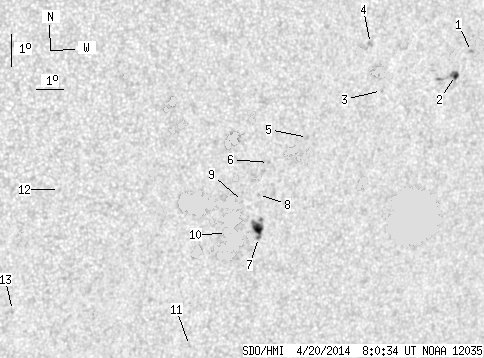

SDO HMI 2014-04-20 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.72 | 209.46 | 2.31 | 123.01 | -16.59 | 220.12 | 31.37 | 246.99 | 0.5443 | 394.2 | 83.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 0.96 | -11.03 | 227.80 | 39.06 | 258.86 | 0.6326 | 889.0 | 794.4 | |
| 2.48 | 10.11 | 1.58 | 6.40 | -11.79 | 227.29 | 38.55 | 257.58 | 0.6269 | 794.1 | 663.8 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -12.39 | 224.52 | 35.78 | 256.02 | 0.5907 | 527.0 | 510.6 | |
| 0.00 | 2.57 | 0.00 | 1.56 | -10.99 | 223.90 | 35.16 | 258.26 | 0.5795 | 692.0 | 629.3 | |
| 0.00 | 1.60 | 0.00 | 0.95 | -13.95 | 221.99 | 33.24 | 252.59 | 0.5597 | 770.0 | 495.9 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -14.78 | 220.68 | 31.94 | 250.62 | 0.5443 | 638.0 | 580.2 | |
| 0.62 | 16.06 | 0.37 | 9.52 | -17.08 | 220.72 | 31.97 | 246.57 | 0.5538 | 648.3 | 693.8 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -15.77 | 220.48 | 31.73 | 248.76 | 0.5452 | 665.0 | 602.4 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -16.01 | 219.93 | 31.19 | 248.07 | 0.5387 | 454.0 | 365.0 | |
| 0.62 | 169.54 | 0.36 | 98.92 | -17.01 | 219.52 | 30.78 | 246.06 | 0.5375 | 436.1 | -19.8 | |
| 0.00 | 1.51 | 0.00 | 0.89 | -20.53 | 218.85 | 30.11 | 239.55 | 0.5471 | -609.0 | -463.8 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -15.90 | 213.42 | 24.67 | 244.21 | 0.4477 | -571.0 | -416.9 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -19.68 | 212.32 | 23.58 | 235.63 | 0.4582 | -550.0 | -473.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
