SDO HMI 2014-04-20 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.33 | 277.56 | 28.15 | 139.02 | -11.16 | 183.55 | -5.20 | 140.55 | 0.1415 | 691.4 | 268.9 | |
|
previous
or next observation for the same group /

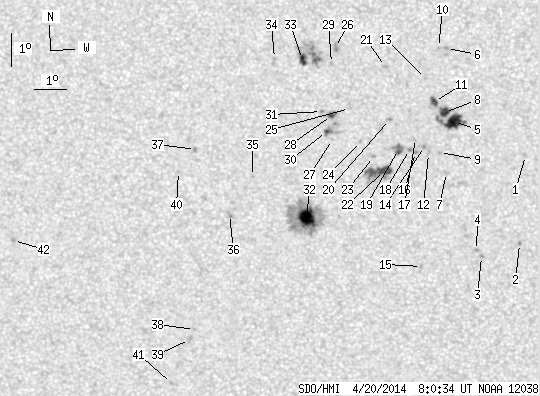

back to the solar disc SDO HMI 2014-04-20 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.04 | 0.00 | 1.02 | -10.97 | 189.07 | 0.33 | 183.21 | 0.1015 | 649.0 | 504.4 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -13.64 | 188.89 | 0.14 | 180.95 | 0.1478 | 961.0 | 793.2 | |
| 0.00 | 1.69 | 0.00 | 0.85 | -14.03 | 187.71 | -1.04 | 173.50 | 0.1557 | 897.0 | 788.6 | |
| 0.00 | 1.60 | 0.00 | 0.80 | -13.85 | 187.55 | -1.19 | 172.39 | 0.1528 | 962.0 | 814.8 | |
| 14.73 | 35.84 | 7.32 | 17.83 | -9.94 | 186.87 | -1.87 | 158.82 | 0.0894 | 1172.6 | 803.7 | |
| 0.00 | 1.95 | 0.00 | 0.97 | -7.73 | 186.67 | -2.07 | 141.27 | 0.0575 | 938.0 | 861.8 | |
| 0.00 | 2.31 | 0.00 | 1.15 | -11.48 | 186.65 | -2.10 | 161.91 | 0.1160 | 714.0 | 560.7 | |
| 5.50 | -5.00 | 2.74 | -5.00 | -9.66 | 186.60 | -2.14 | 154.76 | 0.0869 | 1249.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -10.87 | 186.44 | -2.31 | 158.28 | 0.1074 | 878.0 | 678.2 | |
| 0.00 | 0.53 | 0.00 | 0.26 | -7.70 | 186.43 | -2.31 | 137.79 | 0.0598 | 763.0 | 540.8 | |
| 3.19 | 5.23 | 1.59 | 2.60 | -9.33 | 186.30 | -2.45 | 149.83 | 0.0842 | 1054.6 | 775.6 | |
| 0.00 | 1.77 | 0.00 | 0.88 | -10.90 | 186.10 | -2.65 | 155.58 | 0.1101 | 910.0 | 740.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.63 | 186.03 | -2.72 | 142.19 | 0.0768 | 875.0 | 631.2 | |
| 0.00 | 1.60 | 0.00 | 0.80 | -10.69 | 185.98 | -2.77 | 153.74 | 0.1077 | 1143.0 | 965.6 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -14.33 | 185.84 | -2.90 | 162.87 | 0.1673 | 810.0 | 649.1 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -10.87 | 185.70 | -3.04 | 152.28 | 0.1126 | 987.0 | 851.2 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -10.44 | 185.71 | -3.04 | 150.43 | 0.1062 | 112.0 | 145.0 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -10.78 | 185.52 | -3.23 | 150.48 | 0.1128 | 1103.0 | 928.0 | |
| 0.00 | 8.96 | 0.00 | 4.47 | -10.77 | 185.18 | -3.56 | 147.98 | 0.1157 | 1115.0 | 885.5 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -9.87 | 184.92 | -3.83 | 141.22 | 0.1055 | 1035.0 | 763.8 | |
| 0.00 | 1.60 | 0.00 | 0.79 | -8.26 | 184.81 | -3.93 | 128.54 | 0.0872 | 837.0 | 669.8 | |
| 7.98 | 28.74 | 3.99 | 14.36 | -11.41 | 184.74 | -4.00 | 147.80 | 0.1291 | 1229.2 | 807.7 | |
| 0.00 | 1.77 | 0.00 | 0.89 | -10.98 | 184.41 | -4.34 | 143.78 | 0.1262 | 851.0 | 487.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.52 | 184.02 | -4.73 | 139.06 | 0.1243 | 856.0 | 637.1 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -9.52 | 183.69 | -5.05 | 131.24 | 0.1160 | -829.0 | -481.4 | |
| 0.00 | 3.64 | 0.00 | 1.81 | -7.68 | 183.29 | -5.45 | 115.07 | 0.1044 | -1072.0 | -945.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.45 | 183.16 | -5.59 | 133.97 | 0.1337 | -272.0 | -168.8 | |
| 1.77 | 4.52 | 0.89 | 2.26 | -9.73 | 183.14 | -5.61 | 129.64 | 0.1256 | -1233.7 | -938.0 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -8.16 | 183.17 | -5.58 | 118.58 | 0.1101 | -770.0 | -508.5 | |
| 1.15 | 10.65 | 0.58 | 5.32 | -10.21 | 182.98 | -5.77 | 131.71 | 0.1331 | -1143.2 | -643.5 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -9.61 | 182.83 | -5.91 | 127.41 | 0.1284 | -1016.0 | -859.5 | |
| 17.57 | 95.99 | 8.83 | 48.28 | -12.81 | 182.30 | -6.45 | 140.62 | 0.1733 | 1415.6 | 418.7 | |
| 4.44 | 33.36 | 2.21 | 16.64 | -8.03 | 182.28 | -6.46 | 114.29 | 0.1229 | -1106.9 | -733.9 | |
| 0.00 | 1.69 | 0.00 | 0.84 | -7.99 | 181.42 | -7.32 | 111.53 | 0.1363 | 979.0 | 593.5 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -11.55 | 180.66 | -8.09 | 129.04 | 0.1783 | -1009.0 | -800.6 | |
| 0.00 | 2.48 | 0.00 | 1.26 | -12.69 | 179.90 | -8.84 | 131.30 | 0.2005 | -1038.0 | -822.1 | |
| 0.00 | 2.22 | 0.00 | 1.12 | -10.70 | 178.91 | -9.83 | 120.18 | 0.1950 | 1189.0 | 827.6 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -16.18 | 178.64 | -10.10 | 138.77 | 0.2567 | 900.0 | 680.6 | |
| 0.00 | 3.28 | 0.00 | 1.68 | -16.48 | 178.47 | -10.28 | 139.09 | 0.2624 | 1001.0 | 664.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -11.36 | 178.36 | -10.38 | 121.69 | 0.2086 | 772.0 | 546.9 | |
| 0.00 | 1.69 | 0.00 | 0.87 | -17.83 | 177.81 | -10.93 | 140.69 | 0.2863 | 811.0 | 633.2 | |
| 0.00 | 1.95 | 0.00 | 1.01 | -13.34 | 173.03 | -15.71 | 118.87 | 0.3022 | -949.0 | -740.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
