SDO HMI 2014-04-20 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.73 | 65.82 | 24.64 | 49.74 | -19.90 | 140.67 | -48.07 | 111.97 | 0.7555 | 266.2 | 191.5 | |
|
previous
or next observation for the same group /

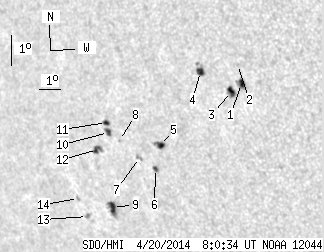

back to the solar disc SDO HMI 2014-04-20 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.28 | 6.57 | 2.27 | 4.55 | -18.48 | 145.38 | -43.36 | 111.26 | 0.7011 | 699.8 | 651.7 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -17.88 | 145.39 | -43.35 | 110.43 | 0.6995 | -95.0 | -138.2 | |
| 4.52 | 7.36 | 3.16 | 5.15 | -18.69 | 144.87 | -43.87 | 111.42 | 0.7075 | 647.7 | 461.7 | |
| 4.26 | 8.87 | 3.03 | 6.30 | -18.00 | 143.72 | -45.03 | 110.16 | 0.7191 | 731.3 | 474.0 | |
| 3.81 | 6.12 | 2.86 | 4.59 | -20.15 | 141.07 | -47.67 | 112.40 | 0.7530 | 683.0 | 492.8 | |
| 1.60 | 2.93 | 1.21 | 2.22 | -20.84 | 140.54 | -48.20 | 113.17 | 0.7601 | 497.4 | 506.5 | |
| 0.00 | 2.48 | 0.00 | 1.91 | -20.45 | 139.93 | -48.82 | 112.52 | 0.7656 | 624.0 | 386.5 | |
| 0.00 | 0.98 | 0.00 | 0.76 | -19.87 | 139.19 | -49.55 | 111.60 | 0.7720 | -574.0 | -492.0 | |
| 6.48 | 10.73 | 5.20 | 8.62 | -21.90 | 137.90 | -50.85 | 113.89 | 0.7892 | -645.9 | -471.4 | |
| 2.75 | 4.70 | 2.15 | 3.68 | -19.59 | 138.77 | -49.98 | 111.15 | 0.7759 | 574.7 | 434.5 | |
| 2.22 | 3.55 | 1.73 | 2.77 | -19.27 | 138.80 | -49.95 | 110.76 | 0.7750 | 579.0 | 491.7 | |
| 3.81 | 6.83 | 3.03 | 5.43 | -20.07 | 138.00 | -50.75 | 111.61 | 0.7846 | 535.3 | 349.4 | |
| 0.00 | 2.48 | 0.00 | 2.05 | -22.09 | 136.48 | -52.26 | 113.82 | 0.8032 | -541.0 | -355.3 | |
| 0.00 | 1.33 | 0.00 | 1.10 | -21.51 | 136.31 | -52.43 | 113.06 | 0.8037 | -430.0 | -417.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
