SDO HMI 2014-04-20 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.89 | 0.00 | 9.88 | -16.16 | 200.61 | 12.42 | 221.88 | 0.3177 | -567.1 | -119.3 | |
|
previous
or next observation for the same group /

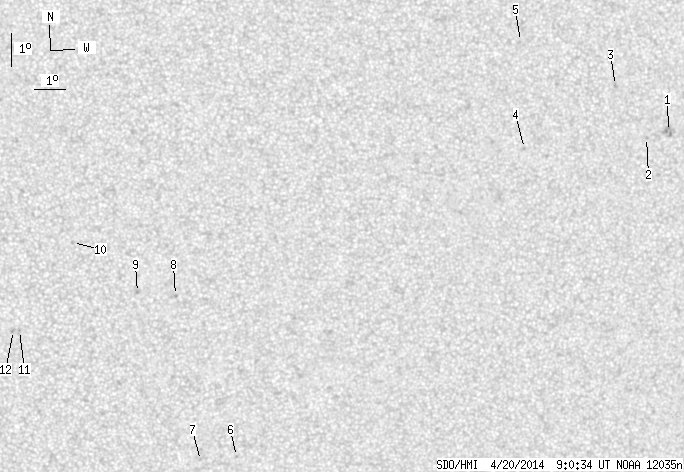

back to the solar disc SDO HMI 2014-04-20 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.03 | 0.00 | 3.23 | -13.45 | 208.98 | 20.79 | 246.55 | 0.3779 | 781.0 | 808.3 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -13.66 | 208.28 | 20.08 | 245.38 | 0.3685 | 760.0 | 629.9 | |
| 0.00 | 1.51 | 0.00 | 0.79 | -12.11 | 207.13 | 18.94 | 248.42 | 0.3427 | -876.0 | -748.9 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -14.10 | 204.33 | 16.13 | 239.52 | 0.3140 | -743.0 | -531.0 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -10.85 | 204.00 | 15.80 | 249.06 | 0.2876 | -774.0 | -592.1 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -23.81 | 195.60 | 7.40 | 200.20 | 0.3428 | -691.0 | -517.5 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -23.95 | 194.41 | 6.21 | 197.06 | 0.3387 | -674.0 | -560.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -18.78 | 193.40 | 5.20 | 200.03 | 0.2519 | -922.0 | -819.7 | |
| 0.00 | 1.69 | 0.00 | 0.86 | -18.69 | 192.19 | 3.99 | 195.73 | 0.2442 | -973.0 | -786.5 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -17.16 | 190.10 | 1.91 | 188.70 | 0.2110 | -805.0 | -517.7 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -19.88 | 188.43 | 0.24 | 180.87 | 0.2551 | -942.0 | -747.8 | |
| 0.00 | 1.69 | 0.00 | 0.86 | -19.88 | 188.24 | 0.04 | 180.16 | 0.2550 | -946.0 | -775.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
