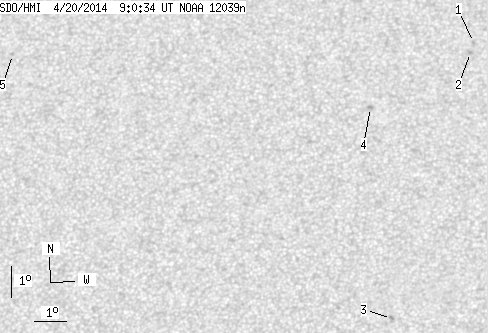

SDO HMI 2014-04-20 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.04 | 0.00 | 4.91 | 17.79 | 184.91 | -3.29 | 7.41 | 0.4009 | -181.4 | -98.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.59 | 20.86 | 188.78 | 0.58 | 358.77 | 0.4409 | -652.0 | -484.4 | |
| 0.00 | 1.77 | 0.00 | 0.98 | 20.53 | 188.68 | 0.48 | 358.96 | 0.4356 | -828.0 | -590.2 | |
| 0.00 | 2.57 | 0.00 | 1.33 | 11.92 | 186.22 | -1.98 | 6.57 | 0.2971 | 871.0 | 675.9 | |
| 0.00 | 2.31 | 0.00 | 1.25 | 18.71 | 185.49 | -2.71 | 6.31 | 0.4090 | -759.0 | -687.7 | |
| 0.00 | 1.33 | 0.00 | 0.76 | 20.65 | 173.78 | -14.41 | 28.28 | 0.4937 | 461.0 | 446.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
