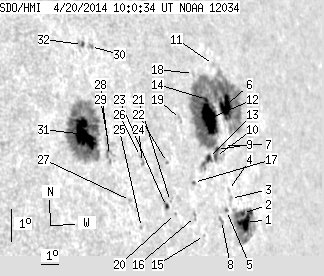

SDO HMI 2014-04-20 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.75 | 533.48 | 105.28 | 528.17 | 4.47 | 246.82 | 59.17 | 278.24 | 0.8654 | -223.3 | -107.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.32 | 59.35 | 17.87 | 64.76 | 2.17 | 250.38 | 62.73 | 275.08 | 0.8936 | -721.7 | -318.1 | |
| 2.22 | -1.00 | 2.41 | -1.00 | 2.43 | 250.21 | 62.56 | 275.39 | 0.8925 | -728.0 | 999999 | |
| 0.00 | 1.95 | 0.00 | 2.08 | 2.83 | 249.46 | 61.81 | 275.94 | 0.8870 | -59.0 | -286.4 | |
| 0.00 | 1.15 | 0.00 | 1.23 | 3.06 | 249.35 | 61.70 | 276.22 | 0.8864 | -263.0 | -360.9 | |
| 0.62 | 1.42 | 0.65 | 1.50 | 2.44 | 249.17 | 61.52 | 275.55 | 0.8842 | -368.1 | -522.1 | |
| 15.44 | 259.12 | 16.70 | 273.77 | 5.67 | 249.54 | 61.89 | 279.10 | 0.8908 | -504.6 | -262.7 | |
| 0.00 | 1.15 | 0.00 | 1.23 | 4.42 | 249.20 | 61.55 | 277.77 | 0.8867 | -351.0 | -294.8 | |
| 0.00 | 3.37 | 0.00 | 3.50 | 2.11 | 248.83 | 61.18 | 275.22 | 0.8811 | -475.0 | -451.4 | |
| 1.86 | -6.00 | 1.95 | -6.00 | 4.26 | 248.74 | 61.09 | 277.66 | 0.8827 | -574.3 | 999999 | |
| 1.60 | -6.00 | 1.66 | -6.00 | 4.04 | 248.64 | 60.99 | 277.43 | 0.8817 | -501.9 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.61 | 6.88 | 249.03 | 61.38 | 280.55 | 0.8883 | -210.0 | -212.7 | |
| 28.83 | -6.00 | 30.01 | -6.00 | 5.18 | 248.44 | 60.79 | 278.75 | 0.8814 | -921.9 | 999999 | |
| 2.75 | 11.00 | 2.82 | 11.23 | 3.94 | 248.19 | 60.54 | 277.39 | 0.8779 | -812.2 | -528.8 | |
| 1.60 | -6.00 | 1.66 | -6.00 | 5.76 | 248.35 | 60.70 | 279.41 | 0.8815 | -784.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.80 | 1.57 | 247.74 | 60.09 | 274.76 | 0.8715 | 326.0 | 284.0 | |
| 0.00 | 2.40 | 0.00 | 2.37 | 2.10 | 247.23 | 59.58 | 275.45 | 0.8676 | 375.0 | 253.7 | |
| 0.44 | 1.33 | 0.44 | 1.32 | 3.13 | 247.19 | 59.54 | 276.63 | 0.8685 | 264.8 | 251.6 | |
| 0.00 | 1.95 | 0.00 | 2.00 | 6.50 | 247.69 | 60.04 | 280.37 | 0.8771 | -313.0 | -322.8 | |
| 0.00 | 2.40 | 0.00 | 2.36 | 5.01 | 246.65 | 59.00 | 278.87 | 0.8662 | -455.0 | -499.4 | |
| 0.00 | 1.06 | 0.00 | 1.02 | 2.10 | 246.05 | 58.40 | 275.62 | 0.8573 | 292.0 | 221.2 | |
| 0.00 | 0.80 | 0.00 | 0.76 | 2.45 | 245.78 | 58.13 | 276.06 | 0.8553 | 164.0 | 161.6 | |
| 0.00 | 1.15 | 0.00 | 1.10 | 3.63 | 245.71 | 58.06 | 277.44 | 0.8562 | -507.0 | -491.2 | |
| 1.51 | 3.90 | 1.42 | 3.68 | 2.28 | 245.54 | 57.89 | 275.90 | 0.8529 | 316.6 | 260.8 | |
| 0.00 | 2.22 | 0.00 | 2.03 | 3.52 | 244.29 | 56.64 | 277.56 | 0.8431 | 302.0 | 172.2 | |
| 0.00 | 1.24 | 0.00 | 1.12 | 1.53 | 244.10 | 56.45 | 275.24 | 0.8387 | 241.0 | 175.4 | |
| 0.00 | 1.06 | 0.00 | 0.97 | 3.70 | 244.20 | 56.55 | 277.78 | 0.8425 | 236.0 | 196.0 | |
| 0.00 | 1.51 | 0.00 | 1.35 | 2.31 | 243.54 | 55.89 | 276.25 | 0.8344 | 435.0 | 345.4 | |
| 0.00 | 5.32 | 0.00 | 4.66 | 3.60 | 242.52 | 54.87 | 277.97 | 0.8263 | 459.0 | 306.8 | |
| 0.00 | 6.30 | 0.00 | 5.52 | 4.00 | 242.50 | 54.85 | 278.45 | 0.8268 | 532.0 | 160.4 | |
| 0.00 | 3.19 | 0.00 | 2.79 | 6.89 | 241.96 | 54.31 | 282.02 | 0.8265 | 446.0 | 331.5 | |
| 31.67 | 153.02 | 26.92 | 130.11 | 4.15 | 241.27 | 53.62 | 278.87 | 0.8149 | 969.9 | 290.7 | |
| 0.89 | 3.81 | 0.77 | 3.30 | 6.92 | 241.55 | 53.89 | 282.16 | 0.8226 | 561.4 | 436.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
