SDO HMI 2014-04-20 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.79 | 86.14 | 7.59 | 54.46 | -12.04 | 225.76 | 38.11 | 256.74 | 0.6222 | 388.9 | 521.5 | |
|
previous
or next observation for the same group /

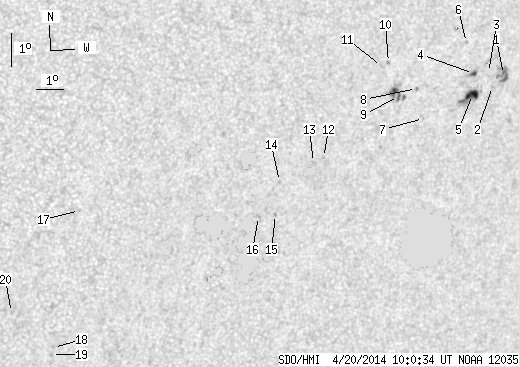

back to the solar disc SDO HMI 2014-04-20 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.98 | 0.00 | 7.84 | -11.04 | 228.55 | 40.90 | 259.09 | 0.6568 | 765.0 | 671.5 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -11.43 | 228.17 | 40.52 | 258.45 | 0.6523 | 627.0 | 533.8 | |
| 0.71 | 14.73 | 0.46 | 9.57 | -11.01 | 227.94 | 40.29 | 259.05 | 0.6488 | 843.4 | 696.4 | |
| 1.86 | 4.35 | 1.20 | 2.80 | -11.08 | 227.35 | 39.70 | 258.87 | 0.6411 | 893.4 | 693.2 | |
| 8.07 | 19.60 | 5.21 | 12.63 | -11.71 | 227.41 | 39.76 | 257.89 | 0.6428 | 912.7 | 529.8 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -10.16 | 226.93 | 39.28 | 260.25 | 0.6345 | -480.0 | -422.2 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -12.54 | 225.61 | 37.96 | 256.25 | 0.6204 | -581.0 | -419.2 | |
| 0.00 | 1.69 | 0.00 | 1.06 | -11.65 | 225.19 | 37.54 | 257.60 | 0.6133 | -310.0 | -359.7 | |
| 1.15 | 18.01 | 0.72 | 11.16 | -11.93 | 224.54 | 36.89 | 257.02 | 0.6049 | 748.5 | 673.3 | |
| 0.00 | 1.51 | 0.00 | 0.93 | -10.92 | 224.00 | 36.35 | 258.59 | 0.5960 | 716.0 | 556.9 | |
| 0.00 | 1.24 | 0.00 | 0.76 | -11.06 | 223.76 | 36.11 | 258.32 | 0.5928 | 705.0 | 568.7 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -13.92 | 222.00 | 34.35 | 253.01 | 0.5749 | 420.0 | 370.7 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -14.09 | 221.66 | 34.01 | 252.60 | 0.5707 | 714.0 | 575.7 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -14.73 | 220.50 | 32.85 | 251.06 | 0.5567 | 701.0 | 635.0 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -15.74 | 220.52 | 32.87 | 249.31 | 0.5606 | 758.0 | 629.8 | |
| 0.00 | 1.69 | 0.00 | 1.00 | -15.83 | 219.91 | 32.26 | 248.88 | 0.5526 | 652.0 | 588.5 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -15.91 | 213.50 | 25.85 | 245.05 | 0.4643 | -717.0 | -501.5 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -20.17 | 213.25 | 25.59 | 236.63 | 0.4875 | -678.0 | -590.6 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -20.39 | 213.21 | 25.56 | 236.20 | 0.4887 | -637.0 | -469.0 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -19.13 | 211.59 | 23.94 | 237.04 | 0.4589 | -689.0 | -578.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
