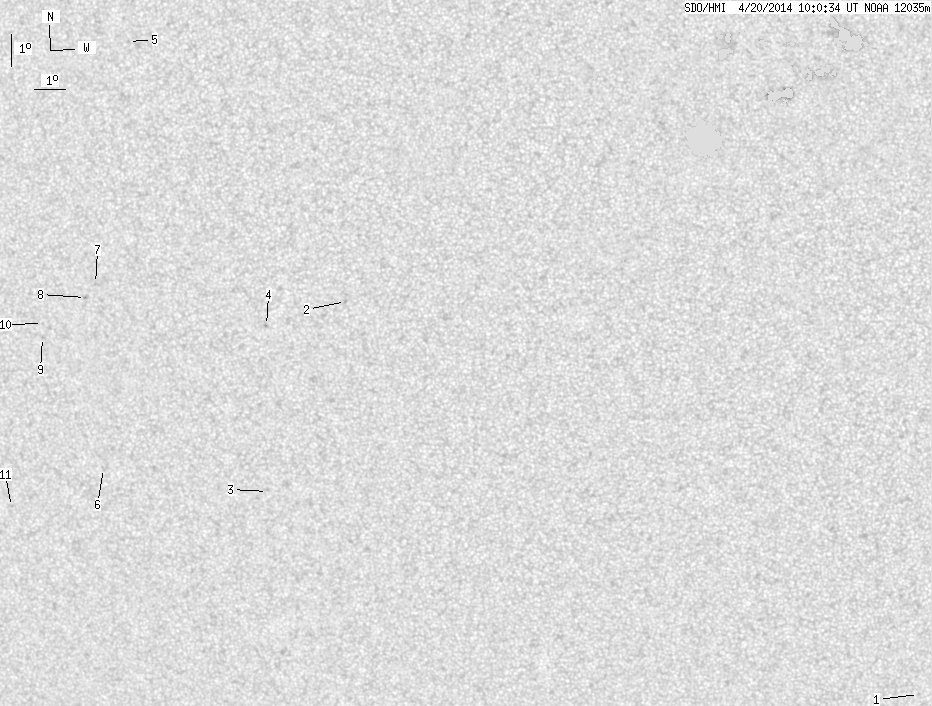

SDO HMI 2014-04-20 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.17 | 0.00 | 6.28 | -19.66 | 165.06 | -22.59 | 126.36 | 0.4638 | -595.1 | -513.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.49 | -30.31 | 189.04 | 1.39 | 182.83 | 0.4271 | 667.0 | 385.3 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -17.53 | 170.58 | -17.07 | 127.88 | 0.3562 | -849.0 | -662.0 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -23.38 | 167.17 | -20.48 | 134.69 | 0.4536 | -509.0 | -598.0 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -18.19 | 167.87 | -19.78 | 125.62 | 0.3972 | -895.0 | -800.1 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -9.39 | 164.12 | -23.53 | 101.62 | 0.4038 | -758.0 | -632.0 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -22.45 | 161.50 | -26.15 | 126.87 | 0.5113 | -527.0 | -490.4 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -16.70 | 162.21 | -25.44 | 116.84 | 0.4630 | -779.0 | -755.2 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -17.11 | 161.80 | -25.85 | 117.35 | 0.4711 | -864.0 | -712.0 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -18.28 | 160.09 | -27.56 | 118.30 | 0.5010 | -764.0 | -461.8 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -17.85 | 160.16 | -27.49 | 117.55 | 0.4976 | -525.0 | -359.4 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -23.50 | 157.84 | -29.81 | 125.53 | 0.5623 | -743.0 | -522.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
