SDO HMI 2014-04-20 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.00 | 264.64 | 32.93 | 132.34 | -11.18 | 183.72 | -3.93 | 148.81 | 0.1292 | 590.9 | 274.2 | |
|
previous
or next observation for the same group /

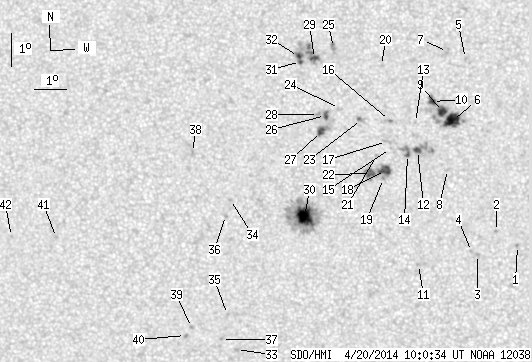

back to the solar disc SDO HMI 2014-04-20 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.67 | -13.69 | 188.94 | 1.29 | 188.38 | 0.1505 | 976.0 | 774.5 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -13.27 | 188.29 | 0.64 | 184.39 | 0.1419 | 920.0 | 679.3 | |
| 0.00 | 1.60 | 0.00 | 0.80 | -13.97 | 187.70 | 0.05 | 180.31 | 0.1536 | 989.0 | 689.6 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -13.87 | 187.51 | -0.14 | 179.12 | 0.1521 | 959.0 | 742.2 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -8.03 | 187.34 | -0.31 | 173.87 | 0.0504 | 835.0 | 660.9 | |
| 13.75 | 43.56 | 6.84 | 21.65 | -9.90 | 186.94 | -0.71 | 171.56 | 0.0838 | 1142.5 | 725.8 | |
| 0.00 | 2.84 | 0.00 | 1.41 | -7.82 | 186.79 | -0.86 | 162.23 | 0.0488 | 716.0 | 634.6 | |
| 0.00 | 1.77 | 0.00 | 0.88 | -11.38 | 186.78 | -0.87 | 172.16 | 0.1098 | 699.0 | 588.0 | |
| 5.68 | -6.00 | 2.82 | -6.00 | -9.63 | 186.63 | -1.02 | 167.33 | 0.0801 | 1244.9 | 999999 | |
| 3.28 | -6.00 | 1.63 | -6.00 | -9.33 | 186.33 | -1.32 | 162.59 | 0.0763 | 1043.7 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -14.27 | 185.86 | -1.79 | 169.19 | 0.1617 | 830.0 | 741.1 | |
| 2.31 | 11.98 | 1.15 | 5.96 | -10.80 | 185.86 | -1.79 | 162.67 | 0.1034 | 1205.1 | 907.6 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -9.96 | 185.81 | -1.84 | 159.23 | 0.0897 | 778.0 | 520.1 | |
| 0.89 | 6.83 | 0.44 | 3.40 | -10.92 | 185.55 | -2.10 | 160.31 | 0.1071 | 1085.8 | 873.2 | |
| 0.00 | 0.71 | 0.00 | 0.35 | -10.74 | 185.03 | -2.62 | 155.23 | 0.1075 | 761.0 | 576.4 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -9.89 | 185.01 | -2.64 | 151.19 | 0.0945 | 1061.0 | 862.7 | |
| 0.00 | 2.66 | 0.00 | 1.33 | -10.53 | 184.91 | -2.74 | 153.34 | 0.1051 | 672.0 | 462.2 | |
| 6.48 | 21.47 | 3.23 | 10.71 | -11.40 | 184.87 | -2.78 | 156.41 | 0.1192 | 1223.5 | 806.6 | |
| 0.00 | 1.60 | 0.00 | 0.80 | -11.65 | 184.81 | -2.84 | 156.74 | 0.1235 | 794.0 | 706.3 | |
| 0.00 | 0.89 | 0.00 | 0.44 | -8.23 | 184.78 | -2.87 | 137.24 | 0.0733 | 711.0 | 510.6 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -10.95 | 184.60 | -3.05 | 152.63 | 0.1141 | 549.0 | 392.6 | |
| 3.81 | -18.00 | 1.90 | -18.00 | -11.49 | 184.41 | -3.24 | 153.35 | 0.1240 | 1073.7 | 999999 | |
| 0.00 | 3.73 | 0.00 | 1.86 | -9.86 | 184.16 | -3.49 | 143.75 | 0.1020 | -841.0 | -485.7 | |
| 0.00 | 2.48 | 0.00 | 1.24 | -9.52 | 183.49 | -4.16 | 136.75 | 0.1050 | -798.0 | -602.0 | |
| 0.00 | 4.70 | 0.00 | 2.34 | -7.68 | 183.33 | -4.32 | 120.53 | 0.0871 | -1105.0 | -888.5 | |
| 1.95 | 4.17 | 0.97 | 2.08 | -9.73 | 183.05 | -4.60 | 135.30 | 0.1128 | -1214.2 | -934.3 | |
| 3.55 | 9.14 | 1.77 | 4.56 | -10.21 | 182.92 | -4.73 | 137.41 | 0.1204 | -1143.9 | -862.4 | |
| 0.00 | 1.77 | 0.00 | 0.88 | -9.70 | 182.84 | -4.81 | 133.80 | 0.1150 | -1004.0 | -761.2 | |
| 2.57 | 26.70 | 1.28 | 13.30 | -8.01 | 182.74 | -4.91 | 120.46 | 0.0987 | -1165.2 | -752.6 | |
| 18.98 | 90.66 | 9.53 | 45.51 | -12.78 | 182.35 | -5.30 | 145.86 | 0.1612 | 1354.8 | 427.5 | |
| 0.98 | -29.00 | 0.49 | -29.00 | -8.09 | 182.31 | -5.34 | 119.17 | 0.1059 | -1059.0 | 999999 | |
| 1.77 | -29.00 | 0.88 | -29.00 | -7.94 | 182.26 | -5.39 | 117.64 | 0.1056 | -1117.4 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.04 | -16.82 | 180.09 | -7.56 | 148.16 | 0.2397 | 864.0 | 684.4 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -12.24 | 180.07 | -7.58 | 133.85 | 0.1796 | -854.0 | -703.6 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -15.74 | 179.85 | -7.80 | 144.68 | 0.2269 | 818.0 | 593.2 | |
| 0.00 | 1.60 | 0.00 | 0.81 | -12.72 | 179.90 | -7.75 | 135.15 | 0.1874 | -948.0 | -696.9 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -16.51 | 179.63 | -8.02 | 145.88 | 0.2396 | 852.0 | 675.7 | |
| 0.00 | 2.57 | 0.00 | 1.30 | -10.80 | 178.93 | -8.72 | 123.66 | 0.1797 | 877.0 | 632.6 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -16.13 | 178.70 | -8.96 | 141.96 | 0.2438 | 928.0 | 688.2 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -16.37 | 178.49 | -9.16 | 141.98 | 0.2490 | 966.0 | 782.2 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -13.30 | 174.56 | -13.09 | 123.11 | 0.2643 | -944.0 | -720.0 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -13.24 | 173.13 | -14.52 | 120.40 | 0.2842 | -907.0 | -671.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
