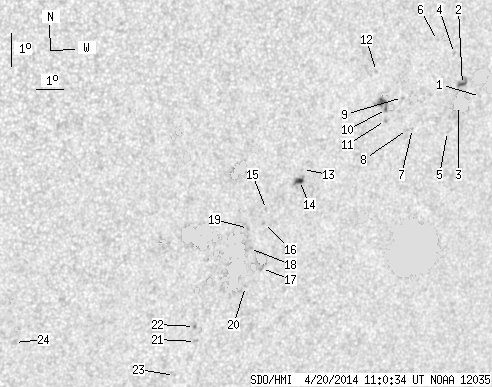

SDO HMI 2014-04-20 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.00 | 71.29 | 7.00 | 44.78 | -13.20 | 224.40 | 37.30 | 254.60 | 0.6144 | 342.1 | 421.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.58 | -11.42 | 228.24 | 41.14 | 258.54 | 0.6603 | 602.0 | 456.5 | |
| 2.31 | 6.56 | 1.50 | 4.27 | -11.10 | 227.45 | 40.35 | 258.92 | 0.6497 | 908.8 | 661.1 | |
| 5.14 | 23.68 | 3.34 | 15.40 | -11.74 | 227.40 | 40.30 | 257.92 | 0.6498 | 961.4 | 625.4 | |
| 0.00 | 1.33 | 0.00 | 0.86 | -10.18 | 226.99 | 39.88 | 260.28 | 0.6426 | -589.0 | -428.5 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -12.55 | 227.10 | 40.00 | 256.63 | 0.6472 | -197.0 | -270.0 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -9.83 | 226.26 | 39.16 | 260.76 | 0.6326 | 499.0 | 463.8 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -12.54 | 225.70 | 38.60 | 256.38 | 0.6288 | -659.0 | -528.6 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -12.58 | 225.51 | 38.41 | 256.28 | 0.6264 | -720.0 | -587.0 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -11.62 | 225.15 | 38.05 | 257.74 | 0.6201 | -154.0 | -244.1 | |
| 0.62 | 10.11 | 0.39 | 6.31 | -12.02 | 224.59 | 37.49 | 256.99 | 0.6132 | 790.3 | 757.8 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -12.35 | 224.61 | 37.51 | 256.45 | 0.6140 | 654.0 | 525.1 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -10.89 | 224.03 | 36.93 | 258.74 | 0.6038 | 719.0 | 528.8 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -14.00 | 221.70 | 34.60 | 252.95 | 0.5785 | 603.0 | 476.5 | |
| 2.93 | 6.74 | 1.77 | 4.09 | -14.34 | 221.65 | 34.55 | 252.35 | 0.5787 | 1041.8 | 819.0 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -15.28 | 220.57 | 33.47 | 250.35 | 0.5671 | 829.0 | 666.5 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -15.71 | 220.54 | 33.44 | 249.59 | 0.5681 | 742.0 | 625.3 | |
| 0.00 | 1.51 | 0.00 | 0.91 | -17.09 | 220.73 | 33.63 | 247.34 | 0.5758 | 542.0 | 468.0 | |
| 0.00 | 2.04 | 0.00 | 1.22 | -16.50 | 220.16 | 33.06 | 248.08 | 0.5660 | 521.0 | 541.7 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -15.89 | 220.01 | 32.91 | 249.06 | 0.5616 | 595.0 | 506.5 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -17.67 | 220.24 | 33.14 | 246.13 | 0.5718 | 745.0 | 582.3 | |
| 0.00 | 2.13 | 0.00 | 1.27 | -19.45 | 218.74 | 31.64 | 242.33 | 0.5606 | -612.0 | -584.3 | |
| 0.00 | 1.77 | 0.00 | 1.06 | -18.99 | 218.60 | 31.50 | 243.02 | 0.5565 | -820.0 | -628.5 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -20.54 | 218.19 | 31.09 | 240.17 | 0.5595 | -528.0 | -404.5 | |
| 0.00 | 3.19 | 0.00 | 1.80 | -19.74 | 212.21 | 25.10 | 236.96 | 0.4783 | -710.0 | -582.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
