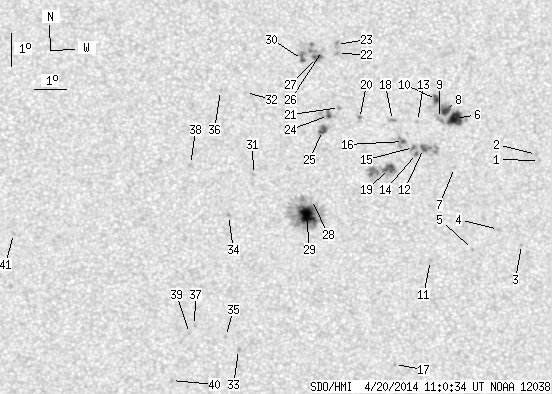

SDO HMI 2014-04-20 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.15 | 254.56 | 28.00 | 127.19 | -11.24 | 183.77 | -3.34 | 153.41 | 0.1253 | 536.4 | 288.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.53 | -11.14 | 189.52 | 2.42 | 201.70 | 0.1126 | 805.0 | 584.8 | |
| 0.00 | 0.71 | 0.00 | 0.35 | -10.96 | 189.43 | 2.33 | 201.55 | 0.1091 | 864.0 | 633.8 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -13.69 | 188.99 | 1.88 | 192.15 | 0.1524 | 827.0 | 759.8 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -13.23 | 188.27 | 1.17 | 188.05 | 0.1424 | 976.0 | 644.7 | |
| 0.00 | 0.89 | 0.00 | 0.44 | -13.84 | 187.47 | 0.36 | 182.35 | 0.1517 | 986.0 | 831.6 | |
| 13.39 | 30.96 | 6.66 | 15.39 | -9.87 | 186.95 | -0.16 | 178.14 | 0.0824 | 1133.7 | 724.7 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -11.35 | 186.91 | -0.19 | 178.29 | 0.1083 | 812.0 | 607.3 | |
| 5.14 | -6.00 | 2.56 | -6.00 | -9.63 | 186.64 | -0.46 | 174.19 | 0.0786 | 1209.3 | 999999 | |
| 0.00 | 4.35 | 0.00 | 2.16 | -9.87 | 186.46 | -0.64 | 172.31 | 0.0831 | 769.0 | 730.6 | |
| 2.93 | 8.34 | 1.45 | 4.14 | -9.29 | 186.37 | -0.73 | 170.04 | 0.0734 | 1055.1 | 767.8 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -14.17 | 186.16 | -0.94 | 174.20 | 0.1581 | 879.0 | 635.8 | |
| 2.31 | 11.71 | 1.15 | 5.83 | -10.77 | 185.96 | -1.14 | 168.72 | 0.1001 | 1194.7 | 949.7 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -9.96 | 185.79 | -1.32 | 164.84 | 0.0870 | 836.0 | 616.7 | |
| 0.71 | 2.22 | 0.35 | 1.10 | -10.92 | 185.75 | -1.35 | 166.99 | 0.1035 | 1015.2 | 888.3 | |
| 0.53 | 1.77 | 0.26 | 0.88 | -10.74 | 185.66 | -1.44 | 165.71 | 0.1008 | 1042.5 | 898.5 | |
| 0.98 | 7.18 | 0.49 | 3.58 | -10.56 | 185.35 | -1.75 | 162.31 | 0.0992 | 1148.4 | 762.5 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -17.36 | 185.01 | -2.09 | 170.62 | 0.2151 | -841.0 | -636.9 | |
| 0.00 | 2.39 | 0.00 | 1.19 | -9.92 | 185.02 | -2.08 | 156.69 | 0.0908 | 926.0 | 768.6 | |
| 5.50 | 24.13 | 2.74 | 12.03 | -11.37 | 184.92 | -2.19 | 160.95 | 0.1150 | 1225.6 | 858.9 | |
| 0.00 | 3.55 | 0.00 | 1.77 | -9.86 | 184.01 | -3.09 | 147.05 | 0.0981 | -670.0 | -370.2 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -9.52 | 183.40 | -3.70 | 140.12 | 0.0997 | -1063.0 | -824.2 | |
| 0.00 | 1.95 | 0.00 | 0.97 | -7.89 | 183.36 | -3.74 | 126.47 | 0.0807 | -933.0 | -783.6 | |
| 0.00 | 3.02 | 0.00 | 1.50 | -7.62 | 183.33 | -3.77 | 123.45 | 0.0784 | -1153.0 | -929.7 | |
| 1.24 | 8.07 | 0.62 | 4.02 | -9.76 | 183.06 | -4.04 | 139.18 | 0.1067 | -1221.6 | -838.5 | |
| 3.73 | 7.27 | 1.86 | 3.63 | -10.21 | 182.87 | -4.23 | 140.56 | 0.1148 | -1167.6 | -876.7 | |
| 0.00 | 1.77 | 0.00 | 0.88 | -7.80 | 182.91 | -4.20 | 122.50 | 0.0864 | -806.0 | -668.8 | |
| 2.39 | 12.68 | 1.19 | 6.31 | -8.01 | 182.75 | -4.35 | 123.57 | 0.0906 | -1173.6 | -952.4 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -12.30 | 182.50 | -4.60 | 147.80 | 0.1478 | 250.0 | 256.8 | |
| 15.88 | 88.70 | 7.96 | 44.48 | -12.75 | 182.34 | -4.77 | 148.53 | 0.1559 | 1373.6 | 446.3 | |
| 1.42 | 6.48 | 0.71 | 3.22 | -8.06 | 182.29 | -4.81 | 121.51 | 0.0978 | -1107.8 | -970.4 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -11.52 | 180.72 | -6.38 | 135.64 | 0.1564 | -850.0 | -641.4 | |
| 0.00 | 0.71 | 0.00 | 0.35 | -9.04 | 180.53 | -6.57 | 121.12 | 0.1326 | 703.0 | 573.9 | |
| 0.00 | 1.60 | 0.00 | 0.81 | -16.86 | 180.09 | -7.01 | 150.11 | 0.2355 | 775.0 | 741.0 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -12.76 | 179.92 | -7.19 | 137.43 | 0.1812 | -785.0 | -658.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -16.45 | 179.69 | -7.41 | 147.80 | 0.2332 | 930.0 | 675.3 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -8.97 | 179.77 | -7.34 | 118.03 | 0.1435 | -786.0 | -600.2 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -16.10 | 178.73 | -8.38 | 143.71 | 0.2376 | 869.0 | 653.2 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -11.20 | 178.78 | -8.32 | 126.75 | 0.1780 | -630.0 | -539.7 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -16.34 | 178.56 | -8.55 | 143.80 | 0.2425 | 855.0 | 681.8 | |
| 0.00 | 1.69 | 0.00 | 0.87 | -17.78 | 177.91 | -9.19 | 145.28 | 0.2683 | 818.0 | 631.8 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -13.19 | 173.13 | -13.97 | 121.17 | 0.2759 | -843.0 | -628.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
