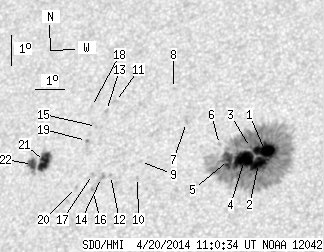

SDO HMI 2014-04-20 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.92 | 437.20 | 54.99 | 251.62 | 17.99 | 166.87 | -20.23 | 40.16 | 0.5111 | -436.2 | -296.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.75 | 380.97 | 14.14 | 217.85 | 18.14 | 168.12 | -18.98 | 38.33 | 0.5004 | -1189.5 | -391.1 | |
| 14.19 | -1.00 | 8.09 | -1.00 | 17.75 | 167.93 | -19.18 | 39.12 | 0.4978 | -1430.6 | 999999 | |
| 0.27 | -1.00 | 0.15 | -1.00 | 18.29 | 167.60 | -19.51 | 38.88 | 0.5070 | -696.0 | 999999 | |
| 25.28 | -1.00 | 14.48 | -1.00 | 17.90 | 167.44 | -19.66 | 39.62 | 0.5041 | -1112.7 | 999999 | |
| 9.76 | -1.00 | 5.61 | -1.00 | 17.89 | 166.90 | -20.20 | 40.39 | 0.5092 | -807.2 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.92 | 18.42 | 166.53 | -20.57 | 40.18 | 0.5187 | -488.0 | -338.7 | |
| 0.00 | 1.51 | 0.00 | 0.89 | 19.19 | 165.30 | -21.80 | 40.80 | 0.5388 | 187.0 | 144.4 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 20.34 | 164.69 | -22.41 | 40.12 | 0.5569 | -444.0 | -361.5 | |
| 0.00 | 1.24 | 0.00 | 0.73 | 17.96 | 163.89 | -23.21 | 44.18 | 0.5401 | 692.0 | 533.0 | |
| 0.00 | 1.33 | 0.00 | 0.78 | 17.44 | 163.86 | -23.24 | 44.93 | 0.5352 | 775.0 | 609.5 | |
| 0.00 | 2.66 | 0.00 | 1.60 | 19.99 | 162.71 | -24.39 | 42.91 | 0.5721 | 718.0 | 620.1 | |
| 0.00 | 1.51 | 0.00 | 0.89 | 17.54 | 162.91 | -24.19 | 45.91 | 0.5461 | 708.0 | 575.2 | |
| 0.00 | 1.86 | 0.00 | 1.12 | 19.70 | 162.44 | -24.66 | 43.58 | 0.5719 | 793.0 | 646.0 | |
| 0.00 | 4.61 | 0.00 | 2.73 | 17.49 | 162.61 | -24.49 | 46.33 | 0.5488 | 791.0 | 696.8 | |
| 0.00 | 1.06 | 0.00 | 0.64 | 19.18 | 162.18 | -24.93 | 44.55 | 0.5696 | 512.0 | 477.8 | |
| 0.00 | 1.33 | 0.00 | 0.79 | 17.11 | 162.35 | -24.75 | 47.15 | 0.5479 | 896.0 | 683.1 | |
| 0.00 | 2.13 | 0.00 | 1.26 | 17.60 | 162.28 | -24.82 | 46.55 | 0.5533 | 761.0 | 595.4 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 19.85 | 161.89 | -25.21 | 44.00 | 0.5790 | 607.0 | 474.1 | |
| 0.00 | 1.24 | 0.00 | 0.75 | 18.73 | 161.90 | -25.21 | 45.46 | 0.5681 | 801.0 | 739.6 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 17.20 | 161.78 | -25.32 | 47.67 | 0.5549 | 682.0 | 582.9 | |
| 14.99 | 31.05 | 9.07 | 18.81 | 18.10 | 160.51 | -26.59 | 47.79 | 0.5766 | 929.8 | 484.4 | |
| 5.68 | -21.00 | 3.45 | -21.00 | 18.02 | 160.10 | -27.00 | 48.32 | 0.5803 | 708.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
