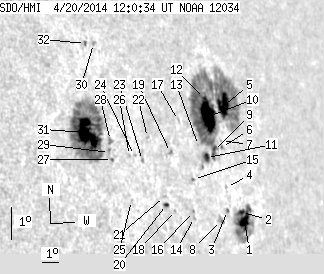

SDO HMI 2014-04-20 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.67 | 510.32 | 104.51 | 523.86 | 4.51 | 246.89 | 60.34 | 278.09 | 0.8753 | -209.9 | -85.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.00 | 51.53 | 12.57 | 58.79 | 2.18 | 250.51 | 63.95 | 274.93 | 0.9029 | -685.9 | -337.3 | |
| 2.48 | -1.00 | 2.82 | -1.00 | 2.44 | 250.32 | 63.77 | 275.24 | 0.9018 | -687.6 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.85 | 2.42 | 249.37 | 62.82 | 275.35 | 0.8945 | -536.0 | -552.2 | |
| 0.00 | 1.24 | 0.00 | 1.37 | 3.12 | 249.38 | 62.82 | 276.12 | 0.8952 | -463.0 | -342.6 | |
| 19.16 | 259.16 | 21.53 | 284.58 | 5.64 | 249.56 | 63.01 | 278.88 | 0.8994 | -357.5 | -217.7 | |
| 0.44 | 1.51 | 0.49 | 1.66 | 4.33 | 249.20 | 62.65 | 277.49 | 0.8951 | -237.0 | -196.4 | |
| 0.00 | 0.80 | 0.00 | 0.88 | 4.54 | 249.23 | 62.68 | 277.72 | 0.8956 | -111.0 | -156.4 | |
| 0.00 | 4.52 | 0.00 | 4.88 | 2.08 | 248.88 | 62.33 | 275.03 | 0.8904 | -560.0 | -535.4 | |
| 4.26 | -5.00 | 4.61 | -5.00 | 4.16 | 248.65 | 62.10 | 277.39 | 0.8907 | -554.1 | 999999 | |
| 29.00 | -5.00 | 31.34 | -5.00 | 5.22 | 248.49 | 61.94 | 278.59 | 0.8906 | -809.6 | 999999 | |
| 3.64 | 7.72 | 3.87 | 8.18 | 3.94 | 248.17 | 61.61 | 277.21 | 0.8866 | -757.4 | -597.2 | |
| 1.51 | -5.00 | 1.63 | -5.00 | 5.75 | 248.33 | 61.78 | 279.21 | 0.8900 | -692.6 | 999999 | |
| 0.00 | 1.24 | 0.00 | 1.30 | 4.27 | 247.70 | 61.15 | 277.66 | 0.8832 | -327.0 | -318.8 | |
| 0.00 | 1.69 | 0.00 | 1.72 | 2.04 | 247.22 | 60.67 | 275.21 | 0.8768 | 272.0 | 208.8 | |
| 0.00 | 1.33 | 0.00 | 1.37 | 3.20 | 247.26 | 60.71 | 276.52 | 0.8784 | 185.0 | 173.5 | |
| 0.00 | 1.06 | 0.00 | 1.09 | 2.22 | 247.17 | 60.62 | 275.42 | 0.8766 | 190.0 | 178.5 | |
| 0.00 | 1.15 | 0.00 | 1.17 | 4.94 | 246.56 | 60.01 | 278.61 | 0.8747 | -514.0 | -501.4 | |
| 0.00 | 0.89 | 0.00 | 0.88 | 2.16 | 246.07 | 59.52 | 275.52 | 0.8672 | 262.0 | 180.9 | |
| 0.00 | 1.86 | 0.00 | 1.85 | 3.92 | 245.94 | 59.38 | 277.55 | 0.8681 | -601.0 | -498.9 | |
| 1.42 | 2.48 | 1.38 | 2.42 | 2.30 | 245.55 | 58.99 | 275.76 | 0.8628 | 525.3 | 380.2 | |
| 0.00 | 1.77 | 0.00 | 1.72 | 2.54 | 245.45 | 58.89 | 276.04 | 0.8622 | 471.0 | 330.4 | |
| 0.00 | 0.98 | 0.00 | 0.93 | 4.27 | 244.63 | 58.08 | 278.18 | 0.8572 | -477.0 | -392.4 | |
| 0.00 | 1.86 | 0.00 | 1.76 | 3.54 | 244.26 | 57.71 | 277.40 | 0.8529 | 305.0 | 155.2 | |
| 0.00 | 1.15 | 0.00 | 1.08 | 3.66 | 243.82 | 57.27 | 277.61 | 0.8491 | 396.0 | 327.6 | |
| 0.00 | 1.06 | 0.00 | 0.98 | 2.27 | 243.54 | 56.99 | 276.03 | 0.8446 | 358.0 | 353.5 | |
| 0.00 | 1.15 | 0.00 | 1.07 | 3.64 | 243.54 | 56.99 | 277.63 | 0.8464 | 247.0 | 234.0 | |
| 0.00 | 1.24 | 0.00 | 1.12 | 3.45 | 242.59 | 56.03 | 277.57 | 0.8373 | 431.0 | 400.6 | |
| 0.00 | 3.10 | 0.00 | 2.80 | 4.02 | 242.54 | 55.98 | 278.26 | 0.8376 | 414.0 | 336.7 | |
| 0.00 | 2.31 | 0.00 | 2.07 | 3.65 | 242.44 | 55.89 | 277.84 | 0.8362 | 486.0 | 413.3 | |
| 0.00 | 2.13 | 0.00 | 1.92 | 6.95 | 242.04 | 55.49 | 281.82 | 0.8378 | 368.0 | 288.3 | |
| 27.32 | 151.84 | 23.87 | 132.76 | 4.17 | 241.27 | 54.71 | 278.68 | 0.8257 | 905.1 | 281.8 | |
| 0.44 | 1.86 | 0.40 | 1.66 | 6.92 | 241.60 | 55.05 | 281.88 | 0.8336 | 505.8 | 497.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
