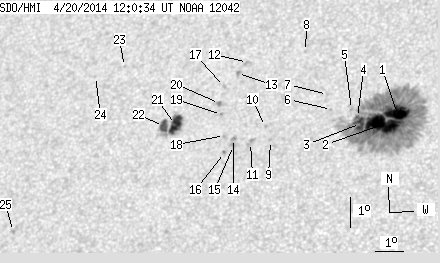

SDO HMI 2014-04-20 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.61 | 437.59 | 51.21 | 251.08 | 17.96 | 166.72 | -19.83 | 39.62 | 0.5070 | -381.2 | -305.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.84 | 375.79 | 11.87 | 214.10 | 18.16 | 168.10 | -18.45 | 37.53 | 0.4957 | -1162.0 | -410.6 | |
| 36.01 | -1.00 | 20.52 | -1.00 | 17.81 | 167.64 | -18.92 | 38.66 | 0.4960 | -1262.6 | 999999 | |
| 10.29 | -1.00 | 5.89 | -1.00 | 17.87 | 166.89 | -19.66 | 39.66 | 0.5038 | -829.5 | 999999 | |
| 0.27 | -1.00 | 0.15 | -1.00 | 18.07 | 166.77 | -19.78 | 39.57 | 0.5072 | -555.0 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 18.34 | 166.54 | -20.02 | 39.54 | 0.5125 | -322.0 | -158.2 | |
| 0.00 | 0.62 | 0.00 | 0.36 | 18.36 | 165.86 | -20.70 | 40.43 | 0.5193 | -613.0 | -488.6 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 18.86 | 165.66 | -20.90 | 40.05 | 0.5267 | -666.0 | -505.8 | |
| 0.00 | 1.06 | 0.00 | 0.63 | 20.32 | 164.70 | -21.86 | 39.45 | 0.5515 | -451.0 | -371.1 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 17.42 | 163.90 | -22.66 | 44.24 | 0.5289 | 513.0 | 541.0 | |
| 0.00 | 1.24 | 0.00 | 0.73 | 17.89 | 163.66 | -22.89 | 43.89 | 0.5360 | 745.0 | 604.1 | |
| 0.00 | 4.79 | 0.00 | 2.81 | 17.38 | 163.22 | -23.34 | 45.13 | 0.5356 | 743.0 | 657.1 | |
| 0.00 | 1.95 | 0.00 | 1.17 | 20.03 | 162.72 | -23.83 | 42.21 | 0.5672 | 613.0 | 521.2 | |
| 0.00 | 1.77 | 0.00 | 1.06 | 19.68 | 162.43 | -24.13 | 43.00 | 0.5665 | 773.0 | 658.3 | |
| 0.00 | 1.95 | 0.00 | 1.15 | 17.54 | 162.61 | -23.95 | 45.64 | 0.5435 | 778.0 | 708.6 | |
| 0.00 | 2.48 | 0.00 | 1.46 | 17.31 | 162.64 | -23.92 | 45.92 | 0.5409 | 853.0 | 649.4 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 17.09 | 162.36 | -24.20 | 46.55 | 0.5418 | 703.0 | 645.0 | |
| 0.00 | 1.77 | 0.00 | 1.06 | 19.27 | 162.04 | -24.52 | 43.98 | 0.5663 | 752.0 | 634.7 | |
| 0.00 | 1.06 | 0.00 | 0.63 | 17.65 | 162.28 | -24.27 | 45.87 | 0.5480 | 718.0 | 662.7 | |
| 0.00 | 1.24 | 0.00 | 0.74 | 18.34 | 162.07 | -24.48 | 45.16 | 0.5569 | 749.0 | 702.5 | |
| 0.00 | 3.02 | 0.00 | 1.80 | 18.71 | 161.95 | -24.61 | 44.81 | 0.5617 | 874.0 | 698.3 | |
| 14.81 | 31.04 | 8.92 | 18.71 | 18.08 | 160.50 | -26.06 | 47.25 | 0.5708 | 938.9 | 535.0 | |
| 6.39 | -21.00 | 3.86 | -21.00 | 18.03 | 160.08 | -26.47 | 47.76 | 0.5747 | 691.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.55 | 20.09 | 158.31 | -28.24 | 46.85 | 0.6113 | 536.0 | 447.3 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 19.80 | 157.31 | -29.25 | 48.18 | 0.6191 | 467.0 | 391.4 | |
| 0.00 | 1.51 | 0.00 | 0.93 | 14.87 | 155.20 | -31.35 | 56.74 | 0.6036 | -725.0 | -603.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
