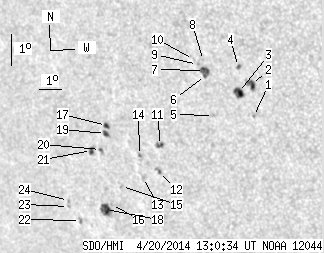

SDO HMI 2014-04-20 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.36 | 73.50 | 23.02 | 52.74 | -19.89 | 140.90 | -45.11 | 112.74 | 0.7233 | 241.0 | 176.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.59 | -19.41 | 145.42 | -40.59 | 113.47 | 0.6713 | 750.0 | 614.1 | |
| 3.72 | 7.09 | 2.47 | 4.70 | -18.42 | 145.63 | -40.38 | 112.11 | 0.6657 | 849.4 | 607.9 | |
| 5.94 | 8.16 | 3.97 | 5.45 | -18.63 | 145.02 | -40.99 | 112.22 | 0.6737 | 730.5 | 473.0 | |
| 0.71 | 1.95 | 0.47 | 1.30 | -17.83 | 145.25 | -40.76 | 111.13 | 0.6686 | -711.5 | -531.4 | |
| 0.00 | 1.77 | 0.00 | 1.21 | -19.28 | 143.75 | -42.25 | 112.73 | 0.6905 | 565.0 | 487.2 | |
| 0.89 | 7.98 | 0.60 | 5.42 | -18.03 | 143.79 | -42.21 | 110.97 | 0.6865 | 585.3 | 497.9 | |
| 4.35 | -6.00 | 2.95 | -6.00 | -17.87 | 143.80 | -42.21 | 110.75 | 0.6861 | 759.2 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.24 | -17.57 | 143.84 | -42.16 | 110.32 | 0.6847 | 571.0 | 495.2 | |
| 0.00 | 1.06 | 0.00 | 0.72 | -17.67 | 143.56 | -42.45 | 110.40 | 0.6884 | 553.0 | 483.7 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -17.51 | 143.43 | -42.57 | 110.13 | 0.6895 | 480.0 | 348.2 | |
| 1.86 | 3.90 | 1.33 | 2.79 | -20.06 | 141.13 | -44.87 | 113.03 | 0.7224 | 798.0 | 606.7 | |
| 0.62 | 3.10 | 0.45 | 2.24 | -20.86 | 140.79 | -45.22 | 114.01 | 0.7284 | 594.0 | 494.5 | |
| 0.00 | 2.75 | 0.00 | 2.01 | -21.00 | 139.99 | -46.01 | 113.97 | 0.7374 | 599.0 | 366.5 | |
| 0.00 | 1.33 | 0.00 | 0.97 | -20.31 | 140.08 | -45.93 | 113.07 | 0.7347 | 571.0 | 529.6 | |
| 0.00 | 1.33 | 0.00 | 0.99 | -21.21 | 138.87 | -47.14 | 113.94 | 0.7500 | -642.0 | -452.9 | |
| 0.00 | 0.98 | 0.00 | 0.74 | -21.74 | 138.16 | -47.85 | 114.43 | 0.7587 | -539.0 | -484.3 | |
| 1.77 | 3.02 | 1.31 | 2.23 | -19.29 | 138.93 | -47.08 | 111.42 | 0.7448 | 694.3 | 557.9 | |
| 7.45 | 11.97 | 5.68 | 9.13 | -21.88 | 137.80 | -48.20 | 114.51 | 0.7626 | -721.4 | -515.3 | |
| 1.95 | 3.55 | 1.45 | 2.63 | -19.53 | 138.79 | -47.22 | 111.71 | 0.7468 | 633.9 | 488.7 | |
| 0.62 | 2.75 | 0.46 | 2.06 | -20.01 | 138.36 | -47.65 | 112.23 | 0.7525 | 578.7 | 444.3 | |
| 2.48 | 3.99 | 1.88 | 3.01 | -20.01 | 137.93 | -48.08 | 112.13 | 0.7571 | 385.0 | 296.6 | |
| 0.00 | 2.48 | 0.00 | 1.95 | -22.14 | 136.44 | -49.57 | 114.50 | 0.7771 | -593.0 | -395.4 | |
| 0.00 | 1.24 | 0.00 | 0.98 | -21.66 | 136.06 | -49.95 | 113.81 | 0.7798 | -398.0 | -326.3 | |
| 0.00 | 1.06 | 0.00 | 0.84 | -21.48 | 136.15 | -49.86 | 113.59 | 0.7785 | -521.0 | -498.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
