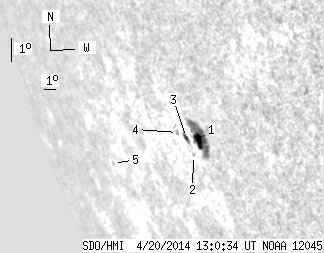

SDO HMI 2014-04-20 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.82 | 44.17 | 13.86 | 56.62 | -23.14 | 118.45 | -67.55 | 112.95 | 0.9244 | 547.3 | 354.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.05 | 36.98 | 11.52 | 46.92 | -23.17 | 118.70 | -67.30 | 112.99 | 0.9230 | 698.1 | 386.1 | |
| 0.00 | 0.71 | 0.00 | 0.94 | -23.58 | 117.82 | -68.19 | 113.38 | 0.9286 | 273.0 | 257.0 | |
| 1.77 | 4.35 | 2.34 | 5.73 | -23.00 | 117.83 | -68.17 | 112.75 | 0.9282 | 300.5 | 221.3 | |
| 0.00 | 1.86 | 0.00 | 2.51 | -22.79 | 117.25 | -68.76 | 112.49 | 0.9316 | 282.0 | 212.2 | |
| 0.00 | 0.27 | 0.00 | 0.52 | -23.16 | 109.63 | -76.37 | 112.61 | 0.9691 | -72.0 | -74.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
