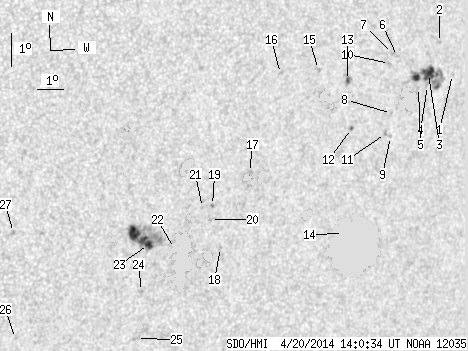

SDO HMI 2014-04-20 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.44 | 436.91 | 14.60 | 281.08 | -15.35 | 223.89 | 38.44 | 251.69 | 0.6331 | 321.4 | 213.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.85 | -10.76 | 229.39 | 43.94 | 259.83 | 0.6949 | 460.0 | 343.1 | |
| 0.00 | 1.60 | 0.00 | 1.08 | -9.83 | 228.68 | 43.23 | 261.11 | 0.6853 | 545.0 | 394.7 | |
| 10.46 | 38.40 | 7.07 | 25.98 | -10.79 | 228.38 | 42.93 | 259.68 | 0.6823 | 863.5 | 573.1 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -11.16 | 228.40 | 42.95 | 259.15 | 0.6830 | 637.0 | 563.5 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -11.24 | 228.04 | 42.59 | 258.99 | 0.6785 | 632.0 | 507.8 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -10.35 | 227.02 | 41.56 | 260.19 | 0.6646 | 261.0 | 193.2 | |
| 0.00 | 2.13 | 0.00 | 1.40 | -10.28 | 226.80 | 41.35 | 260.29 | 0.6618 | -373.0 | -286.5 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -12.09 | 227.08 | 41.62 | 257.60 | 0.6673 | 669.0 | 605.7 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -12.78 | 227.17 | 41.72 | 256.58 | 0.6695 | -568.0 | -479.5 | |
| 0.00 | 2.31 | 0.00 | 1.52 | -10.58 | 226.73 | 41.27 | 259.82 | 0.6611 | 209.0 | 170.5 | |
| 0.00 | 1.68 | 0.00 | 1.12 | -12.70 | 226.95 | 41.49 | 256.66 | 0.6665 | -687.0 | -520.7 | |
| 0.53 | 1.33 | 0.35 | 0.86 | -12.63 | 225.54 | 40.09 | 256.52 | 0.6485 | -514.8 | -438.3 | |
| 1.51 | 5.41 | 0.97 | 3.48 | -11.19 | 225.13 | 39.67 | 258.68 | 0.6410 | 578.6 | 354.8 | |
| 4.26 | 221.60 | 2.80 | 146.93 | -15.83 | 225.90 | 40.45 | 251.74 | 0.6595 | 1207.6 | 304.6 | |
| 0.00 | 2.57 | 0.00 | 1.63 | -10.92 | 223.94 | 38.48 | 258.93 | 0.6249 | 742.0 | 605.9 | |
| 0.00 | 1.95 | 0.00 | 1.21 | -11.12 | 222.49 | 37.03 | 258.37 | 0.6056 | 721.0 | 569.0 | |
| 0.00 | 1.24 | 0.00 | 0.77 | -14.18 | 221.80 | 36.35 | 253.18 | 0.6025 | 523.0 | 679.2 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -16.52 | 221.14 | 35.69 | 249.14 | 0.6008 | 564.0 | 475.1 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -15.25 | 220.58 | 35.13 | 251.01 | 0.5893 | 853.0 | 745.2 | |
| 0.00 | 1.60 | 0.00 | 0.98 | -15.68 | 220.59 | 35.13 | 250.30 | 0.5907 | 730.0 | 574.6 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -15.33 | 220.21 | 34.76 | 250.75 | 0.5846 | 685.0 | 609.3 | |
| 0.89 | 88.14 | 0.54 | 53.66 | -16.63 | 219.40 | 33.95 | 248.24 | 0.5783 | -543.8 | 183.0 | |
| 4.79 | 51.08 | 2.87 | 30.52 | -16.56 | 218.41 | 32.95 | 247.92 | 0.5648 | -745.7 | -407.4 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -18.01 | 218.44 | 32.98 | 245.48 | 0.5712 | 285.0 | 272.1 | |
| 0.00 | 2.75 | 0.00 | 1.67 | -19.47 | 218.57 | 33.11 | 243.14 | 0.5795 | -643.0 | -602.1 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -19.66 | 214.09 | 28.64 | 239.98 | 0.5233 | -682.0 | -601.8 | |
| 0.00 | 2.22 | 0.00 | 1.26 | -16.40 | 213.45 | 28.00 | 245.52 | 0.4968 | -720.0 | -405.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
