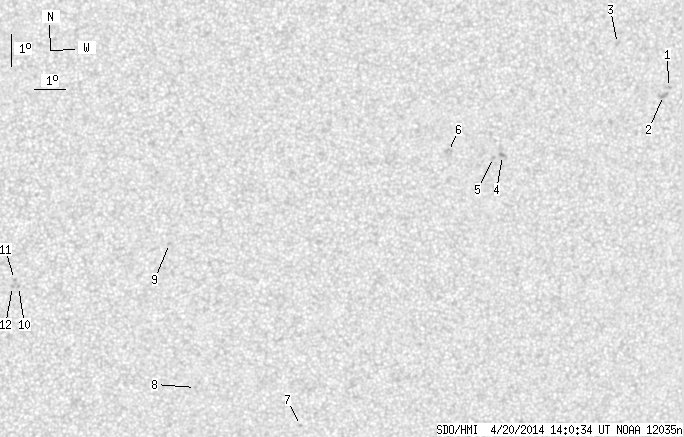

SDO HMI 2014-04-20 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.05 | 0.00 | 12.24 | -15.85 | 202.58 | 17.12 | 233.16 | 0.3591 | -406.8 | -201.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.95 | 0.00 | 1.06 | -13.40 | 209.15 | 23.69 | 248.91 | 0.4208 | 765.0 | 614.5 | |
| 0.00 | 4.70 | 0.00 | 2.56 | -13.65 | 209.01 | 23.55 | 248.24 | 0.4198 | 837.0 | 716.1 | |
| 0.00 | 2.22 | 0.00 | 1.19 | -12.13 | 207.32 | 21.87 | 250.68 | 0.3875 | -811.0 | -673.7 | |
| 0.00 | 2.84 | 0.00 | 1.50 | -15.64 | 203.83 | 18.38 | 238.45 | 0.3578 | -848.0 | -733.3 | |
| 0.00 | 1.68 | 0.00 | 0.89 | -15.71 | 203.54 | 18.09 | 237.90 | 0.3543 | -768.0 | -560.4 | |
| 0.00 | 4.26 | 0.00 | 2.23 | -15.57 | 202.05 | 16.60 | 236.20 | 0.3326 | -475.0 | -565.1 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -24.20 | 197.95 | 12.49 | 211.01 | 0.3845 | 703.0 | 581.9 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -23.04 | 194.34 | 8.88 | 204.76 | 0.3408 | -788.0 | -617.5 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -18.55 | 193.25 | 7.79 | 208.94 | 0.2668 | -783.0 | -625.6 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -19.92 | 188.45 | 3.00 | 190.91 | 0.2608 | -948.0 | -826.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -19.70 | 188.32 | 2.86 | 190.61 | 0.2567 | -917.0 | -808.1 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -19.92 | 188.26 | 2.80 | 190.23 | 0.2602 | -848.0 | -627.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
