SDO HMI 2014-04-20 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.74 | 41.07 | 14.98 | 44.83 | -8.77 | 248.73 | 63.27 | 262.77 | 0.8911 | 382.0 | 23.0 | |
|
previous
or next observation for the same group /

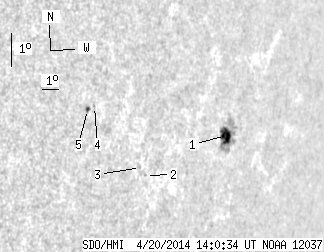

back to the solar disc SDO HMI 2014-04-20 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.50 | 36.36 | 13.90 | 40.62 | -8.74 | 249.40 | 63.95 | 262.80 | 0.8969 | 621.8 | 70.7 | |
| 0.00 | 0.62 | 0.00 | 0.59 | -10.32 | 244.71 | 59.25 | 261.05 | 0.8580 | -398.0 | -382.7 | |
| 0.00 | 0.89 | 0.00 | 0.84 | -10.10 | 244.34 | 58.89 | 261.30 | 0.8548 | -308.0 | -337.8 | |
| 0.00 | 0.89 | 0.00 | 0.78 | -8.47 | 241.31 | 55.85 | 263.26 | 0.8264 | -487.0 | -372.2 | |
| 1.24 | 2.31 | 1.08 | 2.00 | -8.59 | 240.95 | 55.49 | 263.12 | 0.8229 | -537.9 | -434.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
