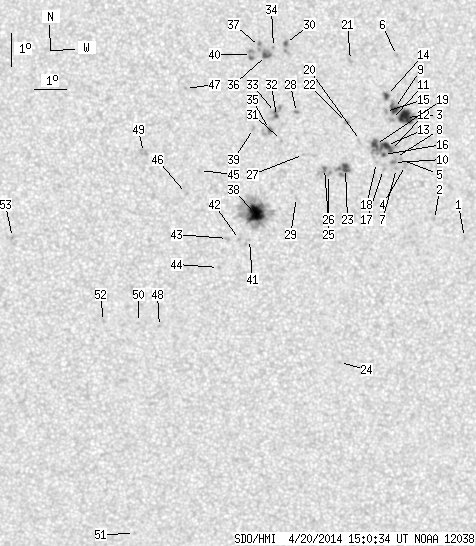

SDO HMI 2014-04-20 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.25 | 248.09 | 27.53 | 123.74 | -11.20 | 183.92 | -0.99 | 172.70 | 0.1137 | 479.4 | 308.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.62 | -13.46 | 188.86 | 3.96 | 204.91 | 0.1602 | 776.0 | 679.3 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -12.92 | 187.93 | 3.02 | 200.83 | 0.1452 | 750.0 | 619.6 | |
| 12.59 | 28.73 | 6.26 | 14.29 | -9.83 | 187.01 | 2.11 | 203.96 | 0.0896 | 1170.3 | 738.4 | |
| 0.00 | 2.66 | 0.00 | 1.33 | -11.28 | 187.02 | 2.12 | 198.73 | 0.1132 | 852.0 | 741.9 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -11.10 | 186.87 | 1.96 | 197.96 | 0.1094 | 881.0 | 753.2 | |
| 0.00 | 1.42 | 0.00 | 0.70 | -7.96 | 186.73 | 1.82 | 212.80 | 0.0585 | 929.0 | 797.5 | |
| 0.00 | 1.60 | 0.00 | 0.80 | -11.37 | 186.74 | 1.84 | 196.20 | 0.1133 | 713.0 | 625.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -11.04 | 186.71 | 1.81 | 196.80 | 0.1076 | 1060.0 | 830.3 | |
| 4.88 | -3.00 | 2.42 | -3.00 | -9.56 | 186.67 | 1.77 | 201.64 | 0.0830 | 1193.8 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.88 | -11.19 | 186.65 | 1.75 | 195.87 | 0.1098 | 1100.0 | 970.3 | |
| 0.00 | 2.31 | 0.00 | 1.15 | -9.89 | 186.58 | 1.68 | 199.28 | 0.0879 | 858.0 | 782.2 | |
| 0.27 | 28.99 | 0.13 | 14.44 | -10.83 | 186.56 | 1.65 | 195.99 | 0.1033 | 1259.7 | 917.0 | |
| 3.37 | -12.00 | 1.68 | -12.00 | -10.68 | 186.43 | 1.53 | 195.25 | 0.1002 | 1253.2 | 999999 | |
| 1.95 | 3.64 | 0.97 | 1.81 | -9.17 | 186.43 | 1.52 | 200.58 | 0.0751 | 1123.7 | 899.5 | |
| 0.00 | 1.77 | 0.00 | 0.88 | -9.65 | 186.40 | 1.50 | 198.18 | 0.0828 | 893.0 | 866.0 | |
| 0.98 | -12.00 | 0.49 | -12.00 | -10.95 | 186.34 | 1.44 | 193.72 | 0.1044 | 1086.3 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.44 | -11.40 | 186.35 | 1.44 | 192.76 | 0.1121 | 737.0 | 612.9 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -11.19 | 186.13 | 1.22 | 191.28 | 0.1077 | 712.0 | 528.2 | |
| 3.72 | -12.00 | 1.85 | -12.00 | -10.65 | 186.10 | 1.19 | 192.07 | 0.0983 | 1157.6 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.35 | -10.53 | 185.64 | 0.73 | 187.65 | 0.0948 | 268.0 | 414.4 | |
| 0.00 | 2.13 | 0.00 | 1.06 | -8.11 | 185.33 | 0.43 | 188.14 | 0.0523 | 904.0 | 690.5 | |
| 0.00 | 1.95 | 0.00 | 0.97 | -9.98 | 185.21 | 0.30 | 183.56 | 0.0847 | 1030.0 | 835.0 | |
| 4.08 | 13.39 | 2.03 | 6.67 | -11.37 | 185.18 | 0.27 | 182.47 | 0.1089 | 1158.7 | 813.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -17.29 | 184.99 | 0.08 | 180.38 | 0.2112 | -881.0 | -681.0 | |
| 0.00 | 2.22 | 0.00 | 1.10 | -11.56 | 184.66 | -0.25 | 177.81 | 0.1120 | 775.0 | 745.6 | |
| 0.53 | 5.85 | 0.27 | 2.92 | -11.37 | 184.53 | -0.37 | 176.64 | 0.1089 | 1023.3 | 772.8 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -10.95 | 183.89 | -1.01 | 170.22 | 0.1028 | -802.0 | -564.7 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -9.68 | 183.68 | -1.22 | 165.06 | 0.0820 | -1050.0 | -849.3 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -12.25 | 183.67 | -1.24 | 170.31 | 0.1258 | 608.0 | 531.4 | |
| 0.80 | 5.67 | 0.40 | 2.81 | -7.60 | 183.36 | -1.55 | 147.83 | 0.0505 | -1169.9 | -850.0 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -10.52 | 183.22 | -1.69 | 162.81 | 0.0983 | -715.0 | -541.8 | |
| 0.80 | 8.25 | 0.40 | 4.10 | -9.80 | 183.07 | -1.83 | 158.70 | 0.0872 | -1171.9 | -855.9 | |
| 0.27 | -32.00 | 0.13 | -32.00 | -9.68 | 183.04 | -1.86 | 157.86 | 0.0855 | -1216.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -7.71 | 182.99 | -1.91 | 143.47 | 0.0558 | -801.0 | -617.6 | |
| 1.06 | 5.85 | 0.53 | 2.91 | -10.19 | 182.85 | -2.05 | 158.12 | 0.0950 | -1166.8 | -848.1 | |
| 2.84 | 6.56 | 1.41 | 3.26 | -7.96 | 182.78 | -2.13 | 143.04 | 0.0614 | -1120.0 | -998.5 | |
| 0.00 | 2.93 | 0.00 | 1.45 | -7.68 | 182.57 | -2.34 | 137.50 | 0.0601 | -956.0 | -962.0 | |
| 17.11 | 76.34 | 8.56 | 38.18 | -12.73 | 182.40 | -2.51 | 162.08 | 0.1392 | 1367.6 | 485.0 | |
| 0.00 | 1.95 | 0.00 | 0.97 | -10.16 | 182.36 | -2.54 | 153.42 | 0.0980 | -881.0 | -735.5 | |
| 0.00 | 6.21 | 0.00 | 3.08 | -7.92 | 182.32 | -2.58 | 137.27 | 0.0661 | -864.0 | -923.7 | |
| 0.00 | 0.89 | 0.00 | 0.44 | -13.52 | 182.20 | -2.70 | 162.53 | 0.1533 | 774.0 | 656.9 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -13.52 | 181.89 | -3.01 | 160.66 | 0.1549 | 788.0 | 519.6 | |
| 0.00 | 2.22 | 0.00 | 1.11 | -13.49 | 181.52 | -3.38 | 158.41 | 0.1566 | 744.0 | 562.2 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -14.37 | 181.23 | -3.68 | 158.81 | 0.1726 | -709.0 | -561.5 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -11.42 | 180.69 | -4.21 | 146.60 | 0.1314 | -810.0 | -557.2 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -12.11 | 180.28 | -4.63 | 146.97 | 0.1454 | -945.0 | -732.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.93 | 180.30 | -4.61 | 129.82 | 0.1038 | -870.0 | -636.2 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -16.16 | 179.34 | -5.57 | 154.02 | 0.2136 | 876.0 | 693.6 | |
| 0.00 | 5.50 | 0.00 | 2.75 | -10.86 | 178.98 | -5.93 | 134.51 | 0.1429 | 723.0 | 605.5 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -16.03 | 178.68 | -6.22 | 151.14 | 0.2168 | 696.0 | 622.9 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -22.58 | 178.29 | -6.62 | 160.46 | 0.3197 | -787.0 | -525.5 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -15.98 | 177.58 | -7.33 | 146.97 | 0.2259 | 750.0 | 540.9 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -13.38 | 174.82 | -10.08 | 130.27 | 0.2243 | -937.0 | -699.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
