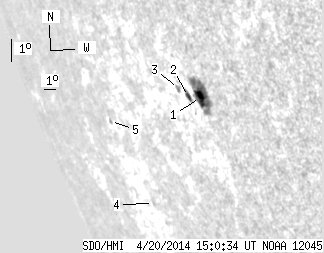

SDO HMI 2014-04-20 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.97 | 50.63 | 14.75 | 63.82 | -23.24 | 117.83 | -67.07 | 113.10 | 0.9210 | 521.5 | 328.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.66 | 40.26 | 11.84 | 49.09 | -23.19 | 118.69 | -66.21 | 113.10 | 0.9162 | 707.1 | 411.5 | |
| 2.31 | 4.70 | 2.91 | 5.94 | -23.08 | 117.79 | -67.11 | 112.92 | 0.9218 | 267.6 | 185.7 | |
| 0.00 | 2.93 | 0.00 | 3.78 | -22.78 | 117.25 | -67.66 | 112.55 | 0.9250 | 381.0 | 204.0 | |
| 0.00 | 1.06 | 0.00 | 1.89 | -25.99 | 110.34 | -74.56 | 115.59 | 0.9619 | -194.0 | -193.4 | |
| 0.00 | 1.68 | 0.00 | 3.12 | -23.21 | 109.56 | -75.34 | 112.68 | 0.9649 | -81.0 | -61.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
