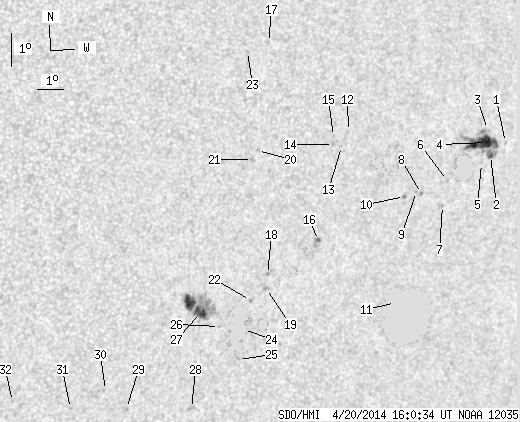

SDO HMI 2014-04-20 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.57 | 424.41 | 22.91 | 277.13 | -15.37 | 223.97 | 39.62 | 252.00 | 0.6482 | 300.1 | 212.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.25 | -10.72 | 229.45 | 45.09 | 259.98 | 0.7090 | 317.0 | 325.5 | |
| 1.86 | 49.74 | 1.29 | 34.27 | -11.15 | 228.88 | 44.52 | 259.32 | 0.7024 | 608.1 | 568.4 | |
| 0.00 | 1.24 | 0.00 | 0.86 | -10.38 | 228.61 | 44.25 | 260.40 | 0.6985 | 341.0 | 390.1 | |
| 16.85 | -2.00 | 11.64 | -2.00 | -10.77 | 228.63 | 44.28 | 259.84 | 0.6991 | 800.0 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.37 | -11.42 | 228.54 | 44.19 | 258.91 | 0.6986 | 424.0 | 397.8 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -12.02 | 227.21 | 42.86 | 257.88 | 0.6828 | 667.0 | 556.6 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -12.78 | 227.16 | 42.80 | 256.75 | 0.6831 | -559.0 | -485.3 | |
| 0.00 | 1.33 | 0.00 | 0.89 | -12.47 | 226.21 | 41.86 | 257.06 | 0.6708 | -645.0 | -568.3 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -12.42 | 226.00 | 41.64 | 257.10 | 0.6680 | -419.0 | -300.1 | |
| 0.44 | 1.42 | 0.29 | 0.94 | -12.60 | 225.54 | 41.18 | 256.75 | 0.6625 | -432.4 | -294.3 | |
| 5.14 | 208.80 | 3.43 | 140.75 | -15.84 | 225.88 | 41.53 | 252.02 | 0.6729 | 1165.7 | 289.9 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -10.77 | 222.97 | 38.61 | 259.19 | 0.6264 | 538.0 | 488.8 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -11.23 | 222.77 | 38.41 | 258.42 | 0.6243 | 671.0 | 579.6 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -11.19 | 222.44 | 38.09 | 258.43 | 0.6200 | 725.0 | 634.8 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -10.95 | 222.41 | 38.05 | 258.82 | 0.6192 | 698.0 | 615.0 | |
| 0.62 | 5.94 | 0.39 | 3.76 | -14.12 | 222.37 | 38.01 | 253.73 | 0.6244 | 809.9 | 669.3 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -8.25 | 219.59 | 35.24 | 262.99 | 0.5775 | 555.0 | 336.2 | |
| 0.00 | 1.42 | 0.00 | 0.88 | -15.26 | 220.60 | 36.24 | 251.38 | 0.6041 | 884.0 | 798.6 | |
| 0.00 | 2.31 | 0.00 | 1.43 | -15.69 | 220.64 | 36.29 | 250.70 | 0.6060 | 704.0 | 636.7 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -11.52 | 219.58 | 35.22 | 257.34 | 0.5814 | 592.0 | 475.8 | |
| 0.00 | 2.57 | 0.00 | 1.56 | -11.80 | 219.43 | 35.08 | 256.83 | 0.5799 | 753.0 | 507.9 | |
| 0.00 | 1.33 | 0.00 | 0.82 | -16.08 | 220.11 | 35.75 | 249.87 | 0.6002 | 449.0 | 429.6 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -8.56 | 218.84 | 34.49 | 262.38 | 0.5671 | 583.0 | 419.2 | |
| 1.06 | 77.93 | 0.66 | 48.09 | -16.98 | 220.03 | 35.67 | 248.38 | 0.6021 | 883.0 | 178.2 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -17.91 | 220.04 | 35.69 | 246.89 | 0.6057 | 808.0 | 732.0 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -16.94 | 219.09 | 34.73 | 248.07 | 0.5898 | -541.0 | -434.2 | |
| 8.60 | 53.64 | 5.21 | 32.46 | -16.54 | 218.28 | 33.93 | 248.38 | 0.5777 | -847.7 | -379.4 | |
| 0.00 | 3.19 | 0.00 | 1.96 | -19.51 | 218.59 | 34.24 | 243.66 | 0.5940 | -682.0 | -629.5 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -19.62 | 216.13 | 31.78 | 242.12 | 0.5634 | -587.0 | -509.2 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -19.10 | 215.24 | 30.88 | 242.45 | 0.5492 | -702.0 | -673.8 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -19.71 | 214.07 | 29.71 | 240.64 | 0.5374 | -600.0 | -503.8 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -19.58 | 211.92 | 27.57 | 239.32 | 0.5091 | -826.0 | -654.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
