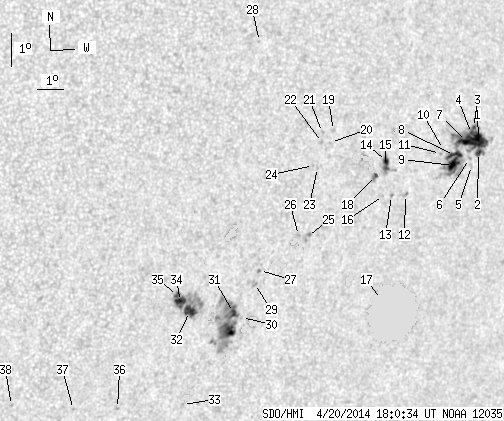

SDO HMI 2014-04-20 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.54 | 502.61 | 55.92 | 336.13 | -14.59 | 224.64 | 41.40 | 253.60 | 0.6689 | 399.5 | 225.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.31 | 113.57 | 11.53 | 79.53 | -10.75 | 228.87 | 45.63 | 259.99 | 0.7154 | 747.0 | 496.7 | |
| 2.75 | -1.00 | 1.95 | -1.00 | -11.14 | 228.95 | 45.70 | 259.45 | 0.7166 | 649.8 | 999999 | |
| 1.68 | -1.00 | 1.18 | -1.00 | -10.40 | 228.59 | 45.34 | 260.46 | 0.7117 | 784.4 | 999999 | |
| 2.66 | -1.00 | 1.87 | -1.00 | -10.58 | 228.54 | 45.29 | 260.19 | 0.7112 | 906.9 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.44 | -11.55 | 228.73 | 45.48 | 258.86 | 0.7143 | 557.0 | 403.3 | |
| 0.00 | 1.33 | 0.00 | 0.94 | -11.34 | 228.60 | 45.35 | 259.13 | 0.7126 | 383.0 | 349.9 | |
| 11.08 | -1.00 | 7.76 | -1.00 | -10.84 | 228.37 | 45.12 | 259.82 | 0.7094 | 946.4 | 999999 | |
| 6.65 | -1.00 | 4.63 | -1.00 | -11.29 | 227.93 | 44.68 | 259.14 | 0.7045 | 883.4 | 999999 | |
| 11.26 | -1.00 | 7.84 | -1.00 | -11.59 | 227.95 | 44.70 | 258.71 | 0.7050 | 861.8 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -11.14 | 227.43 | 44.18 | 259.30 | 0.6982 | 692.0 | 568.9 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -11.27 | 227.32 | 44.07 | 259.11 | 0.6970 | 738.0 | 706.2 | |
| 0.00 | 2.39 | 0.00 | 1.62 | -12.59 | 226.10 | 42.85 | 257.04 | 0.6834 | -586.0 | -529.0 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -12.66 | 225.52 | 42.27 | 256.85 | 0.6763 | -228.0 | -265.7 | |
| 2.93 | 11.88 | 1.95 | 7.91 | -11.64 | 225.12 | 41.87 | 258.30 | 0.6699 | -586.5 | -430.1 | |
| 1.95 | -14.00 | 1.30 | -14.00 | -11.80 | 225.10 | 41.86 | 258.07 | 0.6699 | -564.5 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.24 | -12.67 | 225.19 | 41.94 | 256.77 | 0.6722 | -447.0 | -310.2 | |
| 5.32 | 210.12 | 3.61 | 144.04 | -15.83 | 225.83 | 42.59 | 252.28 | 0.6858 | 1140.1 | 272.0 | |
| 0.98 | 4.17 | 0.65 | 2.76 | -12.09 | 224.75 | 41.50 | 257.57 | 0.6657 | 745.4 | 598.4 | |
| 0.00 | 1.95 | 0.00 | 1.25 | -10.83 | 222.83 | 39.58 | 259.23 | 0.6393 | 673.0 | 504.5 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -11.20 | 222.76 | 39.52 | 258.64 | 0.6389 | 530.0 | 424.8 | |
| 0.00 | 1.33 | 0.00 | 0.85 | -10.91 | 222.40 | 39.15 | 259.04 | 0.6338 | 669.0 | 550.5 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -11.21 | 222.45 | 39.20 | 258.57 | 0.6348 | 696.0 | 615.2 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -11.98 | 222.38 | 39.13 | 257.35 | 0.6349 | 491.0 | 431.4 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -11.93 | 222.21 | 38.96 | 257.41 | 0.6327 | 697.0 | 617.5 | |
| 0.00 | 3.81 | 0.00 | 2.45 | -14.09 | 222.37 | 39.12 | 254.06 | 0.6388 | 554.0 | 681.5 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -14.08 | 222.01 | 38.76 | 253.99 | 0.6341 | 760.0 | 589.0 | |
| 0.00 | 1.42 | 0.00 | 0.89 | -15.22 | 220.70 | 37.45 | 251.83 | 0.6198 | 933.0 | 769.8 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -8.30 | 219.62 | 36.37 | 262.99 | 0.5935 | 562.0 | 458.8 | |
| 0.00 | 3.55 | 0.00 | 2.23 | -15.63 | 220.59 | 37.34 | 251.15 | 0.6195 | 709.0 | 650.5 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -16.69 | 220.31 | 37.06 | 249.37 | 0.6190 | 549.0 | 496.7 | |
| 2.66 | 83.43 | 1.67 | 52.16 | -16.55 | 219.96 | 36.71 | 249.46 | 0.6142 | 530.8 | 125.8 | |
| 8.60 | 47.52 | 5.28 | 29.11 | -16.61 | 218.26 | 35.01 | 248.72 | 0.5923 | -825.8 | -424.0 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -19.48 | 218.65 | 35.40 | 244.28 | 0.6084 | -705.0 | -583.8 | |
| 5.94 | -32.00 | 3.62 | -32.00 | -16.32 | 217.86 | 34.61 | 249.04 | 0.5859 | -927.6 | 999999 | |
| 1.77 | -32.00 | 1.08 | -32.00 | -16.14 | 217.71 | 34.46 | 249.27 | 0.5833 | -989.8 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -19.72 | 216.19 | 32.94 | 242.63 | 0.5786 | -724.0 | -680.0 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -19.83 | 214.55 | 31.30 | 241.48 | 0.5584 | -729.0 | -591.5 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -19.80 | 212.24 | 29.00 | 240.00 | 0.5288 | -758.0 | -656.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
