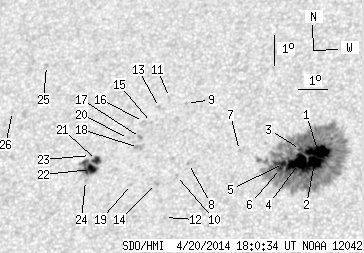

SDO HMI 2014-04-20 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.38 | 438.05 | 45.87 | 246.45 | 17.93 | 166.86 | -16.39 | 34.47 | 0.4748 | -468.9 | -298.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.25 | 387.26 | 12.45 | 216.72 | 18.10 | 167.99 | -15.26 | 32.54 | 0.4668 | -1219.6 | -409.9 | |
| 15.78 | -1.00 | 8.81 | -1.00 | 17.78 | 167.89 | -15.36 | 33.12 | 0.4635 | -1517.9 | 999999 | |
| 0.89 | -1.00 | 0.50 | -1.00 | 18.22 | 167.39 | -15.86 | 33.41 | 0.4733 | -522.7 | 999999 | |
| 25.80 | -1.00 | 14.44 | -1.00 | 17.76 | 167.37 | -15.88 | 34.02 | 0.4678 | -1258.2 | 999999 | |
| 2.48 | -1.00 | 1.39 | -1.00 | 17.77 | 166.87 | -16.38 | 34.81 | 0.4723 | -921.1 | 999999 | |
| 1.24 | -1.00 | 0.70 | -1.00 | 17.61 | 166.79 | -16.46 | 35.15 | 0.4710 | -967.0 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 18.24 | 165.37 | -17.88 | 36.58 | 0.4914 | -625.0 | -533.7 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 17.87 | 163.70 | -19.55 | 39.51 | 0.5026 | 817.0 | 653.2 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 19.86 | 163.39 | -19.86 | 37.41 | 0.5280 | 611.0 | 531.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 17.49 | 163.34 | -19.91 | 40.52 | 0.5018 | 779.0 | 633.4 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 20.08 | 162.78 | -20.47 | 37.96 | 0.5360 | 698.0 | 612.4 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 16.14 | 163.09 | -20.16 | 42.78 | 0.4895 | 737.0 | 582.1 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 19.75 | 162.48 | -20.77 | 38.75 | 0.5352 | 707.0 | 604.2 | |
| 0.00 | 1.86 | 0.00 | 1.07 | 17.25 | 162.69 | -20.55 | 41.74 | 0.5056 | 861.0 | 648.0 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 19.27 | 162.27 | -20.97 | 39.64 | 0.5317 | 688.0 | 573.0 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 19.31 | 161.99 | -21.25 | 39.95 | 0.5348 | 551.0 | 533.0 | |
| 0.00 | 2.22 | 0.00 | 1.29 | 18.78 | 161.96 | -21.29 | 40.67 | 0.5294 | 973.0 | 800.8 | |
| 0.00 | 3.81 | 0.00 | 2.22 | 18.45 | 161.94 | -21.31 | 41.14 | 0.5261 | 789.0 | 787.0 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 17.25 | 161.85 | -21.40 | 42.88 | 0.5141 | 748.0 | 563.1 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 18.76 | 161.55 | -21.69 | 41.23 | 0.5332 | 602.0 | 522.5 | |
| 4.43 | 26.69 | 2.60 | 15.64 | 18.08 | 160.55 | -22.70 | 43.40 | 0.5360 | 896.0 | 645.5 | |
| 8.51 | -21.00 | 4.98 | -21.00 | 17.79 | 160.38 | -22.87 | 44.00 | 0.5348 | 1099.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.63 | 18.25 | 160.32 | -22.93 | 43.45 | 0.5401 | 231.0 | 178.2 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 17.44 | 160.26 | -22.99 | 44.64 | 0.5325 | 680.0 | 550.6 | |
| 0.00 | 1.77 | 0.00 | 1.09 | 21.32 | 158.29 | -24.96 | 41.91 | 0.5907 | 688.0 | 534.7 | |
| 0.00 | 1.15 | 0.00 | 0.70 | 19.82 | 157.34 | -25.91 | 44.81 | 0.5854 | 710.0 | 502.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
