SDO HMI 2014-04-20 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.21 | 56.39 | 15.40 | 66.33 | -23.16 | 118.06 | -65.19 | 113.18 | 0.9091 | 480.2 | 356.1 | |
|
previous
or next observation for the same group /

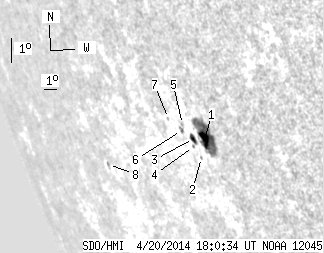

back to the solar disc SDO HMI 2014-04-20 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.02 | 43.80 | 11.59 | 50.46 | -23.21 | 118.62 | -64.63 | 113.27 | 0.9057 | 753.9 | 434.9 | |
| 0.00 | 0.98 | 0.00 | 1.16 | -23.74 | 117.89 | -65.36 | 113.78 | 0.9110 | 144.0 | 163.1 | |
| 2.84 | 4.34 | 3.38 | 5.17 | -23.12 | 117.85 | -65.40 | 113.10 | 0.9109 | 249.8 | 161.1 | |
| 0.00 | 0.80 | 0.00 | 0.96 | -23.36 | 117.61 | -65.63 | 113.34 | 0.9125 | 26.0 | 45.1 | |
| 0.00 | 1.15 | 0.00 | 1.39 | -22.63 | 117.42 | -65.82 | 112.53 | 0.9133 | 98.0 | 135.5 | |
| 0.35 | 2.57 | 0.43 | 3.13 | -22.80 | 117.18 | -66.07 | 112.70 | 0.9150 | 308.8 | 241.5 | |
| 0.00 | 1.33 | 0.00 | 1.66 | -22.36 | 116.53 | -66.72 | 112.17 | 0.9190 | 121.0 | 55.7 | |
| 0.00 | 1.42 | 0.00 | 2.40 | -23.28 | 109.57 | -73.68 | 112.79 | 0.9575 | -137.0 | -92.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
