SDO HMI 2014-04-20 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.05 | 524.51 | 54.67 | 353.04 | -14.69 | 224.46 | 41.76 | 253.50 | 0.6738 | 312.5 | 233.2 | |
|
previous
or next observation for the same group /

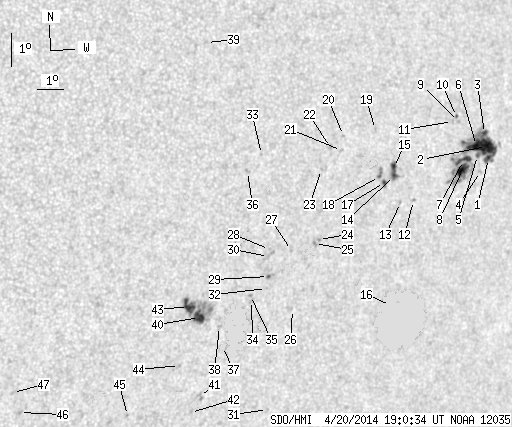

back to the solar disc SDO HMI 2014-04-20 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.37 | 120.05 | 2.41 | 84.92 | -11.13 | 229.06 | 46.37 | 259.52 | 0.7245 | 591.9 | 523.6 | |
| 20.04 | -1.00 | 14.31 | -1.00 | -10.77 | 228.90 | 46.20 | 260.00 | 0.7224 | 770.4 | 999999 | |
| 2.39 | -1.00 | 1.70 | -1.00 | -10.39 | 228.74 | 46.04 | 260.52 | 0.7202 | 723.8 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.26 | -11.54 | 228.79 | 46.09 | 258.92 | 0.7216 | 550.0 | 452.9 | |
| 1.06 | -1.00 | 0.76 | -1.00 | -11.07 | 228.56 | 45.86 | 259.56 | 0.7185 | 610.6 | 999999 | |
| 6.47 | -1.00 | 4.58 | -1.00 | -10.77 | 228.46 | 45.76 | 259.97 | 0.7171 | 981.3 | 999999 | |
| 6.29 | -1.00 | 4.43 | -1.00 | -11.26 | 227.98 | 45.29 | 259.24 | 0.7117 | 887.4 | 999999 | |
| 8.87 | -1.00 | 6.24 | -1.00 | -11.53 | 227.99 | 45.30 | 258.86 | 0.7121 | 892.3 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.05 | -10.10 | 227.54 | 44.85 | 260.85 | 0.7056 | 283.0 | 225.5 | |
| 0.53 | 1.51 | 0.37 | 1.05 | -9.95 | 227.43 | 44.74 | 261.04 | 0.7041 | -336.7 | -243.7 | |
| 0.00 | 1.24 | 0.00 | 0.86 | -10.11 | 227.29 | 44.59 | 260.81 | 0.7025 | -219.0 | -283.8 | |
| 0.00 | 1.33 | 0.00 | 0.91 | -12.59 | 226.09 | 43.40 | 257.11 | 0.6902 | -604.0 | -470.9 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -12.69 | 225.56 | 42.87 | 256.90 | 0.6837 | -460.0 | -329.4 | |
| 2.66 | 11.08 | 1.79 | 7.44 | -11.89 | 225.15 | 42.46 | 258.01 | 0.6776 | -522.4 | -364.3 | |
| 3.90 | -14.00 | 2.62 | -14.00 | -11.65 | 225.06 | 42.37 | 258.36 | 0.6762 | -555.2 | 999999 | |
| 4.08 | 206.22 | 2.79 | 142.65 | -15.83 | 225.88 | 43.18 | 252.42 | 0.6930 | 1111.8 | 275.3 | |
| 1.42 | 3.19 | 0.95 | 2.13 | -12.12 | 224.78 | 42.08 | 257.61 | 0.6732 | 700.9 | 544.2 | |
| 0.62 | 4.52 | 0.41 | 3.01 | -11.95 | 224.54 | 41.84 | 257.83 | 0.6699 | 781.3 | 630.9 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -10.55 | 224.13 | 41.43 | 259.89 | 0.6631 | 571.0 | 509.5 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -10.80 | 222.87 | 40.17 | 259.35 | 0.6471 | 632.0 | 576.3 | |
| 0.00 | 1.51 | 0.00 | 0.98 | -11.26 | 222.86 | 40.17 | 258.65 | 0.6475 | 605.0 | 463.8 | |
| 0.00 | 2.22 | 0.00 | 1.43 | -11.19 | 222.41 | 39.71 | 258.68 | 0.6415 | 721.0 | 547.7 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -11.87 | 222.16 | 39.47 | 257.58 | 0.6392 | 670.0 | 652.3 | |
| 0.00 | 1.24 | 0.00 | 0.80 | -14.00 | 222.44 | 39.75 | 254.35 | 0.6466 | 824.0 | 691.7 | |
| 0.00 | 1.60 | 0.00 | 1.03 | -14.13 | 222.31 | 39.61 | 254.12 | 0.6452 | 806.0 | 631.4 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -16.18 | 221.87 | 39.18 | 250.86 | 0.6445 | 434.0 | 360.5 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -14.39 | 221.44 | 38.74 | 253.50 | 0.6345 | 596.0 | 455.7 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -14.40 | 220.57 | 37.87 | 253.24 | 0.6232 | 557.0 | 381.9 | |
| 0.62 | 2.22 | 0.39 | 1.41 | -15.23 | 220.70 | 38.00 | 251.98 | 0.6270 | 804.9 | 648.0 | |
| 0.00 | 5.32 | 0.00 | 3.36 | -14.62 | 220.57 | 37.88 | 252.91 | 0.6238 | 743.0 | 599.2 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -19.30 | 221.66 | 38.97 | 246.09 | 0.6516 | 371.0 | 309.3 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -15.60 | 220.70 | 38.00 | 251.40 | 0.6280 | 712.0 | 626.2 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -11.55 | 219.75 | 37.06 | 257.67 | 0.6066 | 655.0 | 540.9 | |
| 0.00 | 2.48 | 0.00 | 1.57 | -15.99 | 220.19 | 37.49 | 250.62 | 0.6225 | 628.0 | 522.0 | |
| 0.00 | 1.33 | 0.00 | 0.84 | -15.84 | 220.12 | 37.42 | 250.83 | 0.6212 | 773.0 | 643.6 | |
| 0.00 | 1.86 | 0.00 | 1.15 | -12.09 | 219.30 | 36.60 | 256.69 | 0.6014 | 765.0 | 659.4 | |
| 0.53 | 82.81 | 0.33 | 52.16 | -17.46 | 219.37 | 36.68 | 248.02 | 0.6167 | -586.8 | 90.2 | |
| 0.00 | 1.51 | 0.00 | 0.94 | -16.85 | 219.12 | 36.42 | 248.88 | 0.6114 | -729.0 | -593.7 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -8.28 | 217.27 | 34.57 | 262.88 | 0.5680 | 276.0 | 271.5 | |
| 8.60 | 45.75 | 5.31 | 28.22 | -16.61 | 218.29 | 35.59 | 248.94 | 0.5999 | -835.4 | -399.5 | |
| 0.00 | 3.99 | 0.00 | 2.50 | -19.04 | 218.85 | 36.16 | 245.32 | 0.6160 | -524.0 | -436.7 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -19.55 | 218.62 | 35.93 | 244.42 | 0.6153 | -546.0 | -456.2 | |
| 8.60 | -40.00 | 5.28 | -40.00 | -16.30 | 217.80 | 35.10 | 249.27 | 0.5924 | -927.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -18.12 | 217.85 | 35.15 | 246.32 | 0.5997 | -462.0 | -375.3 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -19.76 | 216.22 | 33.52 | 242.88 | 0.5862 | -774.0 | -634.2 | |
| 0.00 | 2.48 | 0.00 | 1.45 | -19.85 | 212.18 | 29.48 | 240.26 | 0.5353 | -739.0 | -579.5 | |
| 0.00 | 1.77 | 0.00 | 1.03 | -19.24 | 211.80 | 29.10 | 241.06 | 0.5269 | -568.0 | -476.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
