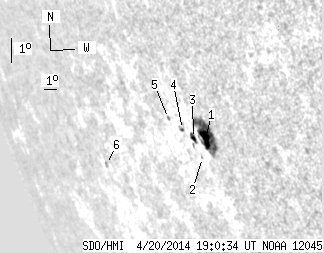

SDO HMI 2014-04-20 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.94 | 55.42 | 14.79 | 64.33 | -23.20 | 117.96 | -64.74 | 113.26 | 0.9060 | 594.4 | 367.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.73 | 43.00 | 12.19 | 48.71 | -23.23 | 118.66 | -64.04 | 113.35 | 0.9017 | 787.5 | 455.6 | |
| 0.00 | 0.80 | 0.00 | 0.93 | -23.79 | 117.91 | -64.78 | 113.89 | 0.9072 | 259.0 | 237.1 | |
| 1.68 | 5.94 | 1.97 | 6.95 | -23.16 | 117.80 | -64.90 | 113.19 | 0.9075 | 299.7 | 217.8 | |
| 0.53 | 2.22 | 0.63 | 2.65 | -22.83 | 117.24 | -65.45 | 112.77 | 0.9110 | 284.3 | 239.0 | |
| 0.00 | 1.42 | 0.00 | 1.73 | -22.41 | 116.51 | -66.19 | 112.26 | 0.9156 | 139.0 | 90.0 | |
| 0.00 | 2.04 | 0.00 | 3.36 | -23.33 | 109.52 | -73.17 | 112.86 | 0.9551 | -194.0 | -108.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
