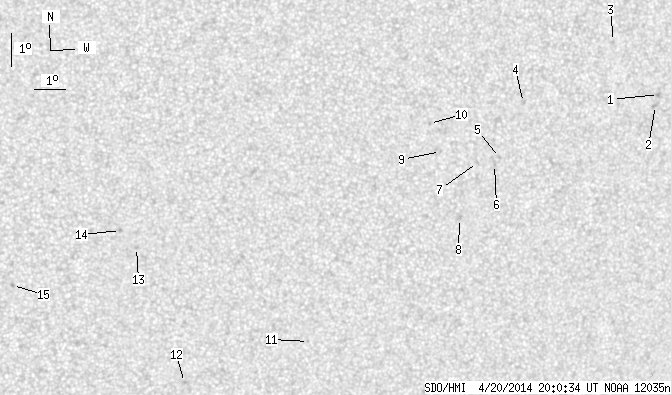

SDO HMI 2014-04-20 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.25 | 0.00 | 11.98 | -16.12 | 201.54 | 19.40 | 235.64 | 0.3882 | -546.3 | -290.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.13 | 0.00 | 1.19 | -13.43 | 209.24 | 27.10 | 250.88 | 0.4708 | 822.0 | 708.1 | |
| 0.00 | 3.10 | 0.00 | 1.74 | -13.77 | 209.17 | 27.03 | 250.15 | 0.4712 | 748.0 | 559.9 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -11.88 | 207.52 | 25.38 | 253.32 | 0.4396 | -689.0 | -547.6 | |
| 0.00 | 2.13 | 0.00 | 1.15 | -13.84 | 204.67 | 22.53 | 247.03 | 0.4057 | -449.0 | -382.7 | |
| 0.00 | 1.42 | 0.00 | 0.77 | -15.54 | 204.04 | 21.90 | 242.57 | 0.4066 | -715.0 | -484.0 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -15.76 | 203.90 | 21.76 | 241.93 | 0.4060 | -789.0 | -654.1 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -15.72 | 203.32 | 21.18 | 241.46 | 0.3976 | -832.0 | -648.5 | |
| 0.00 | 1.60 | 0.00 | 0.86 | -17.45 | 202.91 | 20.77 | 237.13 | 0.4045 | -750.0 | -557.7 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -15.42 | 202.05 | 19.91 | 240.82 | 0.3777 | -657.0 | -503.9 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -14.57 | 201.61 | 19.47 | 242.40 | 0.3655 | -745.0 | -592.4 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -21.40 | 198.28 | 16.14 | 222.44 | 0.3852 | -730.0 | -549.0 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -22.78 | 194.26 | 12.12 | 212.45 | 0.3625 | -831.0 | -651.2 | |
| 0.00 | 1.77 | 0.00 | 0.92 | -18.58 | 192.38 | 10.24 | 215.81 | 0.2893 | -726.0 | -652.4 | |
| 0.00 | 1.86 | 0.00 | 0.96 | -18.06 | 191.84 | 9.69 | 215.48 | 0.2771 | -884.0 | -687.1 | |
| 0.00 | 1.68 | 0.00 | 0.87 | -19.81 | 188.45 | 6.30 | 202.18 | 0.2749 | -968.0 | -753.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
