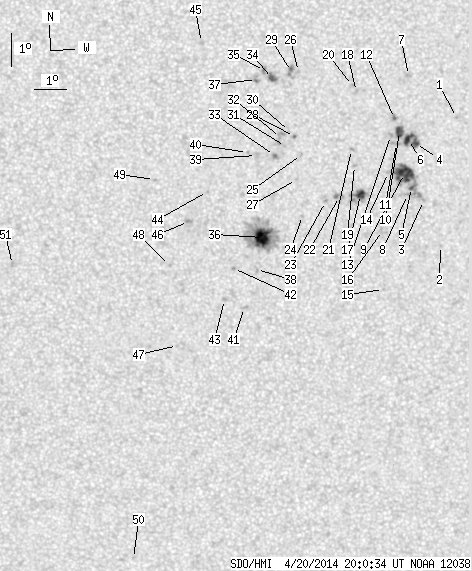

SDO HMI 2014-04-20 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.64 | 263.83 | 31.77 | 131.72 | -11.21 | 184.10 | 1.96 | 198.42 | 0.1185 | 470.7 | 232.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.02 | 188.43 | 6.29 | 237.88 | 0.1284 | 841.0 | 716.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -12.90 | 188.02 | 5.87 | 216.42 | 0.1688 | 718.0 | 523.9 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -11.54 | 187.46 | 5.32 | 219.16 | 0.1445 | 725.0 | 544.7 | |
| 3.37 | 22.96 | 1.68 | 11.45 | -9.82 | 187.19 | 5.05 | 226.74 | 0.1196 | 1003.2 | 833.8 | |
| 1.24 | 39.54 | 0.62 | 19.76 | -11.15 | 187.09 | 4.94 | 218.92 | 0.1352 | 1099.6 | 785.9 | |
| 5.05 | -4.00 | 2.52 | -4.00 | -9.70 | 186.97 | 4.83 | 226.24 | 0.1155 | 1208.2 | 999999 | |
| 0.00 | 2.66 | 0.00 | 1.32 | -7.77 | 186.95 | 4.81 | 241.09 | 0.0953 | 882.0 | 627.8 | |
| 0.00 | 2.22 | 0.00 | 1.11 | -11.36 | 186.97 | 4.82 | 217.26 | 0.1368 | 885.0 | 737.6 | |
| 20.39 | -5.00 | 10.18 | -5.00 | -10.72 | 186.86 | 4.72 | 219.73 | 0.1271 | 1178.8 | 999999 | |
| 5.59 | -4.00 | 2.78 | -4.00 | -9.46 | 186.69 | 4.55 | 226.12 | 0.1091 | 1198.9 | 999999 | |
| 0.00 | 3.46 | 0.00 | 1.72 | -9.82 | 186.61 | 4.46 | 223.24 | 0.1125 | 834.0 | 748.2 | |
| 0.35 | 2.48 | 0.18 | 1.24 | -9.07 | 186.54 | 4.39 | 227.87 | 0.1025 | 1134.5 | 860.8 | |
| 0.00 | 1.95 | 0.00 | 0.97 | -9.58 | 186.42 | 4.28 | 223.55 | 0.1072 | 847.0 | 770.9 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -10.70 | 186.37 | 4.23 | 216.82 | 0.1215 | 676.0 | 547.2 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -14.25 | 186.27 | 4.13 | 203.79 | 0.1738 | 734.0 | 548.9 | |
| 0.00 | 3.90 | 0.00 | 1.95 | -12.46 | 186.21 | 4.07 | 208.57 | 0.1456 | 588.0 | 712.4 | |
| 5.67 | 15.52 | 2.83 | 7.75 | -11.37 | 185.52 | 3.38 | 208.06 | 0.1233 | 1152.0 | 682.5 | |
| 0.00 | 2.04 | 0.00 | 1.01 | -8.26 | 185.37 | 3.23 | 225.78 | 0.0781 | 893.0 | 729.7 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -10.49 | 185.33 | 3.18 | 210.40 | 0.1084 | 819.0 | 569.4 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -8.08 | 185.25 | 3.10 | 226.40 | 0.0744 | 686.0 | 614.1 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -10.01 | 185.23 | 3.09 | 212.07 | 0.1004 | 830.0 | 673.6 | |
| 0.00 | 4.17 | 0.00 | 2.08 | -11.43 | 184.87 | 2.73 | 203.13 | 0.1195 | 611.0 | 838.5 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -11.58 | 184.44 | 2.30 | 199.37 | 0.1193 | 798.0 | 697.3 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -12.01 | 183.74 | 1.60 | 192.87 | 0.1230 | 701.0 | 494.1 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -10.16 | 183.70 | 1.56 | 197.06 | 0.0917 | -737.0 | -564.1 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -7.66 | 183.60 | 1.46 | 210.04 | 0.0507 | -804.0 | -585.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.92 | 183.55 | 1.41 | 193.52 | 0.1038 | -752.0 | -525.5 | |
| 0.00 | 1.95 | 0.00 | 0.97 | -9.62 | 183.49 | 1.34 | 196.55 | 0.0816 | -971.0 | -739.9 | |
| 0.00 | 6.38 | 0.00 | 3.17 | -7.66 | 183.39 | 1.25 | 206.30 | 0.0490 | -984.0 | -883.0 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -9.47 | 183.33 | 1.19 | 195.25 | 0.0783 | -677.0 | -544.3 | |
| 0.00 | 0.53 | 0.00 | 0.26 | -9.92 | 183.21 | 1.07 | 192.48 | 0.0855 | -779.0 | -575.3 | |
| 0.00 | 6.47 | 0.00 | 3.22 | -9.65 | 183.06 | 0.92 | 191.38 | 0.0803 | -937.0 | -846.6 | |
| 0.35 | 2.84 | 0.18 | 1.41 | -10.19 | 182.88 | 0.73 | 188.17 | 0.0891 | -1287.2 | -976.2 | |
| 2.48 | 6.03 | 1.23 | 2.99 | -7.87 | 182.81 | 0.67 | 193.77 | 0.0490 | -1184.5 | -956.5 | |
| 0.00 | 3.28 | 0.00 | 1.63 | -7.63 | 182.57 | 0.43 | 189.74 | 0.0440 | -1124.0 | -875.6 | |
| 19.15 | 88.93 | 9.57 | 44.43 | -12.68 | 182.51 | 0.37 | 182.73 | 0.1316 | 1328.8 | 399.9 | |
| 0.00 | 4.34 | 0.00 | 2.15 | -7.90 | 182.33 | 0.18 | 183.82 | 0.0482 | -851.0 | -788.9 | |
| 0.00 | 2.39 | 0.00 | 1.20 | -13.65 | 182.32 | 0.18 | 181.19 | 0.1484 | 818.0 | 677.6 | |
| 0.00 | 3.37 | 0.00 | 1.68 | -10.19 | 182.32 | 0.18 | 182.05 | 0.0883 | -721.0 | -608.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.10 | 182.05 | -0.09 | 178.95 | 0.0866 | -877.0 | -688.3 | |
| 0.00 | 2.75 | 0.00 | 1.38 | -14.81 | 181.95 | -0.19 | 178.89 | 0.1684 | -905.0 | -649.6 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -13.62 | 181.61 | -0.53 | 176.50 | 0.1481 | 463.0 | 364.9 | |
| 0.00 | 2.39 | 0.00 | 1.20 | -14.56 | 181.33 | -0.81 | 175.19 | 0.1648 | -971.0 | -684.4 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -11.28 | 180.82 | -1.32 | 168.03 | 0.1095 | -892.0 | -668.4 | |
| 0.00 | 2.13 | 0.00 | 1.05 | -6.78 | 180.66 | -1.48 | 137.88 | 0.0385 | 930.0 | 688.3 | |
| 0.00 | 2.93 | 0.00 | 1.46 | -12.18 | 180.23 | -1.91 | 165.08 | 0.1273 | -958.0 | -769.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -15.96 | 179.85 | -2.29 | 168.41 | 0.1923 | 715.0 | 511.4 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -13.52 | 179.63 | -2.51 | 163.67 | 0.1523 | -901.0 | -660.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.91 | 179.20 | -2.95 | 153.30 | 0.1128 | 719.0 | 632.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -22.57 | 178.31 | -3.83 | 168.35 | 0.3071 | -774.0 | -567.3 | |
| 0.00 | 1.77 | 0.00 | 0.90 | -13.45 | 174.75 | -7.39 | 139.19 | 0.1923 | -989.0 | -728.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
