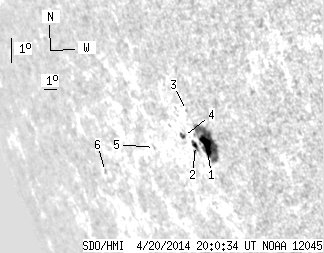

SDO HMI 2014-04-20 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.31 | 55.43 | 14.94 | 62.69 | -23.20 | 118.16 | -63.99 | 113.32 | 0.9010 | 587.6 | 399.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.91 | 44.16 | 12.18 | 49.16 | -23.24 | 118.62 | -63.53 | 113.41 | 0.8981 | 776.9 | 465.9 | |
| 1.60 | 6.12 | 1.83 | 7.02 | -23.18 | 117.84 | -64.30 | 113.27 | 0.9035 | 297.8 | 229.3 | |
| 0.00 | 0.89 | 0.00 | 1.00 | -22.07 | 118.13 | -64.01 | 112.07 | 0.9007 | 260.0 | 238.6 | |
| 0.80 | 2.84 | 0.93 | 3.32 | -22.84 | 117.23 | -64.92 | 112.83 | 0.9074 | 328.6 | 242.9 | |
| 0.00 | 0.27 | 0.00 | 0.34 | -22.99 | 114.70 | -67.44 | 112.79 | 0.9238 | 196.0 | 241.0 | |
| 0.00 | 1.15 | 0.00 | 1.85 | -23.34 | 109.51 | -72.63 | 112.89 | 0.9525 | -227.0 | -144.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
