SDO HMI 2014-04-20 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.51 | 105.32 | 22.59 | 70.34 | -19.85 | 141.11 | -40.47 | 114.14 | 0.6704 | 134.7 | 228.6 | |
|
previous
or next observation for the same group /

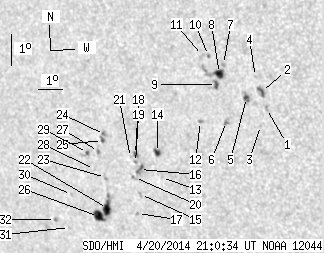

back to the solar disc SDO HMI 2014-04-20 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.95 | 0.00 | 1.22 | -18.92 | 145.86 | -35.73 | 114.69 | 0.6102 | 709.0 | 594.2 | |
| 2.04 | 4.70 | 1.27 | 2.93 | -18.38 | 145.80 | -35.79 | 113.82 | 0.6089 | 902.2 | 706.7 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -19.43 | 145.50 | -36.09 | 115.32 | 0.6168 | 671.0 | 577.6 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -17.91 | 145.68 | -35.91 | 113.01 | 0.6086 | -575.0 | -405.7 | |
| 1.60 | 5.68 | 1.00 | 3.57 | -18.54 | 145.17 | -36.42 | 113.79 | 0.6174 | 871.0 | 655.7 | |
| 0.00 | 3.46 | 0.00 | 2.21 | -19.24 | 144.19 | -37.40 | 114.45 | 0.6322 | 736.0 | 606.4 | |
| 0.00 | 1.68 | 0.00 | 1.06 | -17.48 | 144.52 | -37.07 | 111.87 | 0.6218 | 677.0 | 577.2 | |
| 5.14 | 14.45 | 3.26 | 9.18 | -17.74 | 144.29 | -37.29 | 112.20 | 0.6255 | 973.9 | 557.2 | |
| 1.77 | 5.05 | 1.13 | 3.22 | -18.08 | 144.09 | -37.50 | 112.63 | 0.6292 | 756.4 | 418.7 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -17.17 | 143.99 | -37.59 | 111.19 | 0.6274 | 751.0 | 660.9 | |
| 0.00 | 3.01 | 0.00 | 1.92 | -17.16 | 143.76 | -37.83 | 111.09 | 0.6304 | 552.0 | 404.3 | |
| 0.00 | 1.95 | 0.00 | 1.26 | -19.18 | 143.15 | -38.44 | 113.94 | 0.6447 | -809.0 | -689.8 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -20.82 | 141.03 | -40.56 | 115.52 | 0.6758 | 668.0 | 559.6 | |
| 2.75 | 4.34 | 1.83 | 2.90 | -20.04 | 141.11 | -40.48 | 114.43 | 0.6721 | 813.3 | 601.1 | |
| 0.00 | 1.77 | 0.00 | 1.21 | -21.30 | 139.97 | -41.62 | 115.80 | 0.6897 | 635.0 | 519.9 | |
| 1.86 | 3.81 | 1.26 | 2.58 | -20.52 | 140.19 | -41.40 | 114.78 | 0.6845 | 690.2 | 561.8 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -21.88 | 139.63 | -41.96 | 116.48 | 0.6955 | 584.0 | 457.8 | |
| 1.24 | 2.75 | 0.84 | 1.86 | -20.04 | 140.17 | -41.42 | 114.11 | 0.6832 | 674.1 | 533.9 | |
| 0.00 | 1.42 | 0.00 | 0.96 | -20.29 | 140.09 | -41.50 | 114.43 | 0.6849 | 419.0 | 303.9 | |
| 0.00 | 2.39 | 0.00 | 1.63 | -20.75 | 139.89 | -41.70 | 115.01 | 0.6887 | 316.0 | 302.0 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -20.13 | 139.93 | -41.66 | 114.14 | 0.6862 | 331.0 | 296.4 | |
| 7.80 | 25.72 | 5.46 | 18.05 | -21.65 | 138.39 | -43.20 | 115.72 | 0.7086 | -855.1 | -513.7 | |
| 0.00 | 2.57 | 0.00 | 1.78 | -20.68 | 138.65 | -42.94 | 114.48 | 0.7026 | -686.0 | -613.7 | |
| 0.00 | 2.04 | 0.00 | 1.40 | -19.35 | 139.06 | -42.53 | 112.76 | 0.6939 | 866.0 | 700.8 | |
| 1.06 | 2.31 | 0.73 | 1.59 | -19.53 | 138.91 | -42.68 | 112.97 | 0.6962 | 729.6 | 588.3 | |
| 7.36 | -22.00 | 5.19 | -22.00 | -21.87 | 137.90 | -43.69 | 115.86 | 0.7147 | -731.6 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.29 | -19.86 | 138.63 | -42.96 | 113.33 | 0.7004 | 645.0 | 544.0 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -20.40 | 138.26 | -43.33 | 113.97 | 0.7061 | -619.0 | -562.7 | |
| 0.89 | 3.37 | 0.62 | 2.35 | -19.86 | 138.14 | -43.45 | 113.19 | 0.7059 | 611.5 | 336.6 | |
| 0.00 | 1.15 | 0.00 | 0.82 | -21.11 | 136.97 | -44.62 | 114.54 | 0.7226 | -565.0 | -520.9 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -22.13 | 136.47 | -45.12 | 115.74 | 0.7310 | -252.0 | -310.2 | |
| 0.00 | 1.42 | 0.00 | 1.03 | -21.84 | 135.94 | -45.65 | 115.20 | 0.7359 | -597.0 | -459.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
