SDO HMI 2014-04-20 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.83 | 57.28 | 15.32 | 63.46 | -23.25 | 118.18 | -63.41 | 113.45 | 0.8972 | 533.7 | 406.5 | |
|
previous
or next observation for the same group /

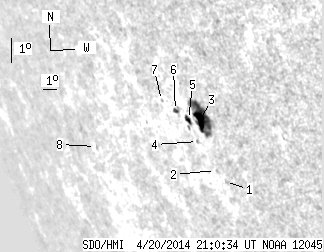

back to the solar disc SDO HMI 2014-04-20 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.78 | -25.25 | 118.69 | -62.90 | 115.72 | 0.8955 | 397.0 | 412.0 | |
| 0.00 | 0.53 | 0.00 | 0.59 | -24.86 | 118.31 | -63.28 | 115.24 | 0.8978 | 247.0 | 185.7 | |
| 10.20 | 43.63 | 11.20 | 47.67 | -23.25 | 118.57 | -63.02 | 113.48 | 0.8946 | 784.3 | 485.1 | |
| 0.00 | 1.15 | 0.00 | 1.30 | -23.87 | 117.87 | -63.72 | 114.10 | 0.9000 | 95.0 | 100.0 | |
| 2.57 | 5.94 | 2.90 | 6.70 | -23.16 | 117.83 | -63.76 | 113.30 | 0.8997 | 316.7 | 187.2 | |
| 1.06 | 3.55 | 1.22 | 4.06 | -22.81 | 117.15 | -64.43 | 112.85 | 0.9041 | 372.1 | 242.4 | |
| 0.00 | 1.06 | 0.00 | 1.25 | -22.43 | 116.41 | -65.18 | 112.36 | 0.9089 | 103.0 | 91.8 | |
| 0.00 | 0.71 | 0.00 | 1.11 | -23.35 | 109.39 | -72.20 | 112.91 | 0.9504 | -154.0 | -175.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
